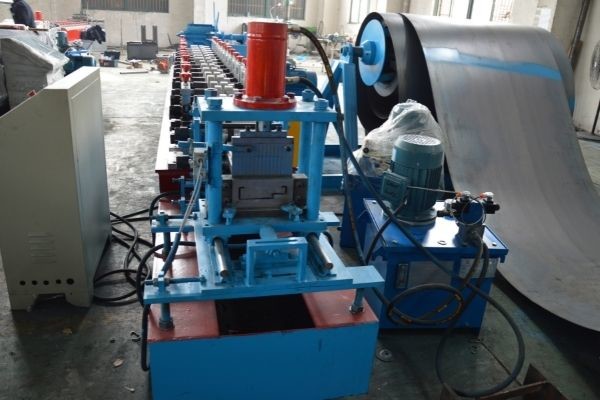

Full Automation High Speed 30m/Min Steel Rolling Shutter Door Octagonal Tube Roll Forming Machine

Technological process

Decoiler—feeding with guide—Roll forming—Punching&Cutting—Products collecting

1 Materials to form shutter door: 1.0-4.0mm galvanized coils, Feeding width: 1220mm

2 Forming steps: about 18 stations

3 Material of rollers: Gcr15 steel precision-machined, high frequency quenching HRC58-62,

4 Material of main shaft : 45# high quality steel (diameter＞￠50)

5 Cutting: hydraulic cutting; quenching HRC58-62

6 Electronic control: PLC control Siemens Brand

7 Dimension of machine: 11500mmX1350mmX800mm

8. Working speed:12-15m/min;

9 Drive system: gear box drive

10 main motor power: 45kw

11. Punching moulds: 3 sets of punching dies at one time

12. Curving machine: Curving continuously to make the sheets straight, the min Radius 1.8m, the Radius can be adjustable.

13. Cutting: Hydraulic cutting

14. Hydraulic station power 37kw, the pressure 25-30Mpa.

15. Out table: lift auto stacker

16. Total Power 130kw

Production Line

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
