Building Material Ridge Capping Metal Roll Forming Machine For Roof , Low Noise

Ask Lasest Price
Brand Name :	SUSSMAN
Model Number :	SM-RH
Certification :	SGS.CE.ISO
Price :	negotiable
Payment Terms :	L/C, T/T
Supply Ability :	10 sets per month
Delivery Time :	60 days after deposit

Add to Cart

Product Details
Company Profile

Building Material Ridge Capping Metal Roll Forming Machine For Roof , Low Noise

Fully automation ridge cap roll forming equipment/ roof roll forming machine

Technical Parameter

Item NO	Description	Offered specification
1	Product Line speed	5-10m/min(not include cutting )
2	Suitable material thickness	0.3-0.7mm
3	Raw material	Color steel sheet and galvanized steel
4	Material width	300mm-500mm
7	Roller stations	16 stations
8	Roller material	45# Bearing steel, quenching treatment
9	Shaft diameter	Φ75mm ,material is 45# forge steel
10	Transmission	By chain one inch 20A single chain
11	Material of chain	45# forged steel with frequency quenching, 12A
12	Cutting system	Hydraulic cutting blade cr12mov with quench HRC58-62°
13	Main motor power	7.5kw
14	Motor power of hydraulic station	4kw
15	Hydraulic station pressure	12Mpa
16	Tolerance	6m+-1.5mm
17	Machine Frame	H Beam Steel

Main Components

Equipment name	Quantity
3T passive un-coiler	1 set
Feeding and leveling device	1 set
Main roll forming machine	1 set
Hydraulic station	1 set
Control system (including control box)	1 set
Out tables	2 sets
Spare parts	1 package

Working Flow of Roll Forming Machine

Decoiler----Feeding---Roll forming---Hydraulic Cutting---Run out tables

Advantage

For more information,welcome to visit our website: www.rollformingmachine.info

1. Designed by 15 years experienced R&D members with lifetime services.
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12Mov mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
7. 75mm diameter solid steel shaft

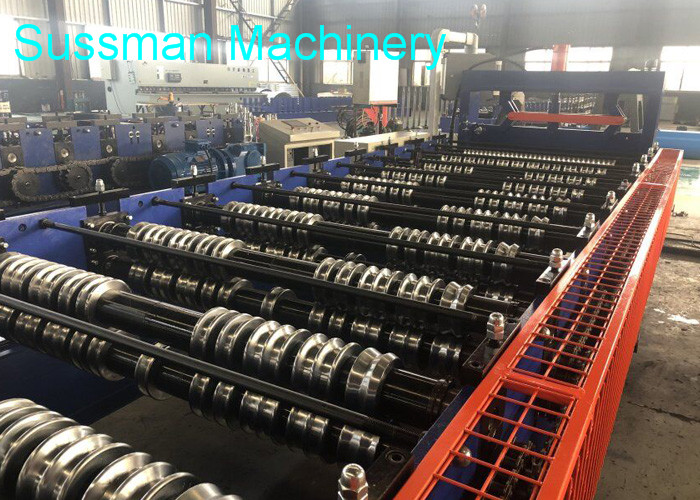

Photo Gallery
