Color Coated Colis Roof Panel Roll Forming Machine , IBR Sheet Roll Forming Machine


Technical Parameter

Machine List

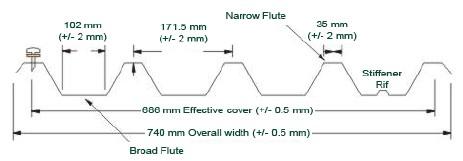

Profile Drawing






Working Flow

Technical Data

• Un-coiler

De-coiling Holder: about 1500mm×1500mm×1700mm

​

• Roll forming machine​

1. Rolling Speed : 0-12m/min(cutting time is not include)
2. Steel sheet Thickness: 0.3-0.8mm galvanized sheet, color painted coils
3. Max roller height: Max 180 mm
4. Control System: PLC Panasonic
5. Roller Stations: about 18 stations
6. Roller Material : 45# forge steel, coated with chrome
7. Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching
8. Maim Motor Power: 7.5kw Anhui wannan Brand
9. Hydraulic Pressure: 12Mpa
10. Material Of The Stations: Wall plate thickness 16mm
11. Tolerance: +1.5mm
12. Power supplier:380V, 50HZ,3 phase
13. Way Of Drive:1.2 inch single chain
14. The size of the forming machine:7000*1300*1000mm
15. Machine weight: about 6 tons
16. Angle accuracy: +-1degree

• Hydraulic Cutting​

1. Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.
2. Material of blade: CR12 with heat treatment
3. Length measuring: Automatically
4. The cutting thickness: 0.3- 1mm
5. Hydraulic Station Power: 4 KW

• Hydraulic station

It is controlled by oil pump. After filling the hydraulic oil into

the hydraulic oil tank ,the pump drive the cutter machine to begin the

cutting job.

Components: The system includes a set of hydraulic tank, a set of hydraulic

oil pump, two hydraulic pipes. and two sets of electromagnetism valves.

​

• Out tables

Size:4000*1350*1000mm

​

• Control Box​

1. Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
2. Length & quantity measurement automatically;
3. Length & quantity controlled by PLC
4. Length inaccuracy can be amended easily.
5. Control panel: Button-type switch and touch screen
6. Unit of length: millimeter (switched on the control panel)
7.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
