0.4-0.8Mm Thickness Coils Corrugated Sheet Roll Forming Machine With 12-15m / Min

Ask Lasest Price
Brand Name :	Sussman
Model Number :	RP
Certification :	ISO 9001 SGS
Price :	USD 22000-25000 per set
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5 sets per month
Delivery Time :	50 days

Add to Cart

Product Details
Company Profile

0.4-0.8Mm Thickness Coils Corrugated Sheet Roll Forming Machine With 12-15m / Min

0.4-0.8Mm Thickness Coils Corrugated Sheet Roll Forming Machine with 12-15m/min

Technical Data

Item NO	Description	Offered specification
1.0	Roll forming machine
1.1	Rolling speed	12-15m/min(not include cutting time)
1.2	Rolling thickness	0.4mm-0.8mm
1.3	Raw material	Color painted coils
1.6	Dimension	About 8000×1600×1200(mm)
1.7	Effective width	836mm
1.8	Feeding Coil width	1000mm
1.9	Roller stations	About 18 stations
1.10	Roller material	45#forge steel, coated with chrome
1.11	Shaft diameter	Φ76mm
1.12	Transmission	By chain 1.2 inch
1.13	Material of chain	45# forged steel with frequency quenching, 12A
1.14	Material of cutting	Cr12Mov with quench HRC58-62°
1.15	Tolerance	10m+-1.5mm
1.16	Hydraulic station	4kw

Technical Process

Uncoiling—Feedingwithguide—Roll forming—cutting—Products collecting

Machine List

No	Name	Type	Quantity
1	5 ton passive de-coiler	YX18-76-836	1 set
2	Main roll forming machine	YX18-76-836	1 set
3	Control box	YX18-76-836	1 unit
4	Hydraulic station	YX18-76-836	1 unit
5	Out tables	YX18-76-836	2 units

Details of each part

1. Cutting

(1) Cutting after forming: Cut the sheet after roll forming to required length

(2) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

(3) Material of blade: CR12with heat treatment

(4) Length measuring: Automatic length measuring

(5) Tolerance of length: 10m+/- 2mm

2. Out table:

Size:2000*1350*1000mm, two sizes

3. Control Box: Panasonic

(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)

(2) length & quantity measurement automatically;

(3) length & quantity controlled by PLC,

(4) Length inaccuracy can be amended easily.

(5). Control panel: Button-type switch and touch screen

(6) Unit of length: millimeter (switched on the control panel)

Packaging of Corrugated Sheet Making Machine

1. 1 *40GP container for one corrugated sheet roll forming line

2. Main machine is nude packing and fastened by steel wire inside the container

3. Hydraulic and electric control parts are wrapped with plastic film

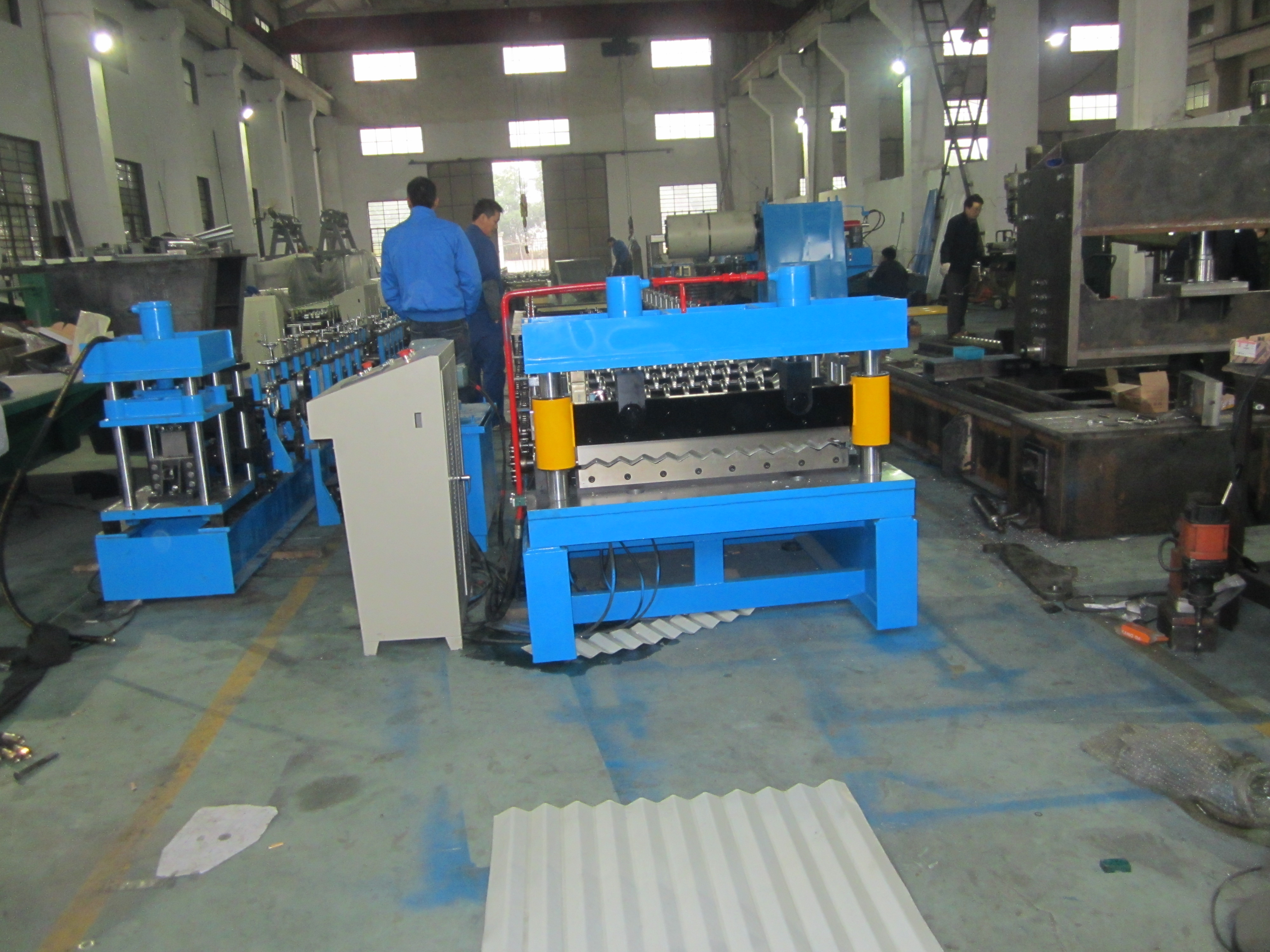

Detail photos:
