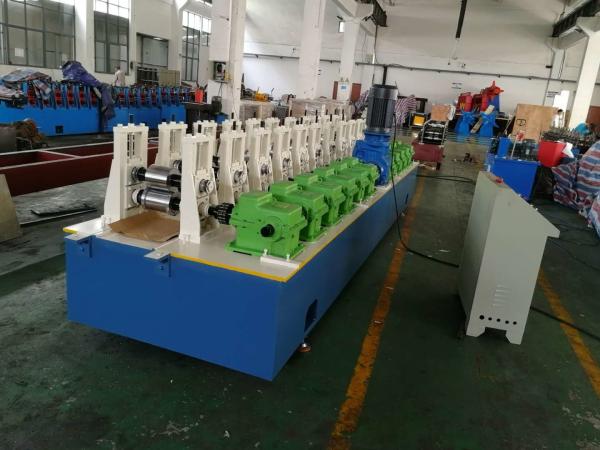

    16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting

    Ask Lasest Price
    Brand Name : SUSSMAN
    Model Number : SS-VY
    Certification : CE, SGS, ISO9001
    Price : USD29999-39999 per set
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 60-90 working days after payment
    • Product Details
    • Company Profile

    16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting


    16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting



    Technical Parameter


    Item NO

    Description


    Offered specification

    1.0Roll forming machine
    1.1Rolling speed2-3m/min
    1.2Rolling thickness1.2-2mm
    1.3Raw materialGalvanized steel sheet G550
    1.6dimension6500×600×1200(mm)
    1.7Effective width50mm
    1.8Roller stations

    About 16 stations


    1.9Roller materialGcr15, coated with chrome, Quenching
    1.10Shaft diameterΦ60mm ,material is 45# forge steel
    1.11TransmissionBy Chain
    1.12Material of chain45# forged steel with frequency quenching, 12A
    1.13Main Motor7.5kw
    1.14Material of cuttingCr12Mov with quench HRC58-62°
    1.15Cutting Tolerance6m+-1.0mm
    1.16Voltage220v, 60hz, 3phase

    Main Components


    NoNameTypequantity
    12 ton double heads de-coilerRF-VY1 set
    2Hydraulic punchingRF-VY1 set
    3Main roll forming machineRF-VY1 set
    4Control boxRF-VY1 unit
    5Hydraulic stationRF-VY1 unit
    6Cutting deviceRF-VY1 unit
    7Out tablesRF-VY2 units

    • Double heads De-coiler

    Diameter: 460-520mm expansion.

    Expansion: manually

    Capacity: 2000kg per mandrel/ 2000kg per mandrel

    Max Coil Width: 500mm

    Drag tension brake with variable brake tension adjustment valve


    Working Flow


    Uncoiling—Feeding with guide—hydraulic punching—Roll forming—cutting—Products collecting




    Profile Drawing
