Hydraulic Automatic Cutting To Length Machine For 0.5-1.5mm Galvanized Steel

• Material of processible coiled plate: Galvanized steel, Carbon steel and others G550MPA
• Thickness of coiled plate: 0.5-1.5mm;
• Width of coiled plate: 1500mm;
• line speed: 0-30m/min ;
• Loading capacity:5T;
• Coil I.D: ф480-510mm;
• Coil O.D: ≤ф1400mm;
• diameter of leveling rollers: ф60
• the distance between leveling rollers: 65mm
• material of leveling rollers:42CrMo, hardness:HRC52-60
• Power: 220V three-phase electricity 60Hz;
• tolerance of diagonal error:≤±2mm/2000mm
• tolerance of length error: ≤±2mm/2000mm

Machine lists

Details of Each Composition

• Mechanical electrical de-coiler

Structure: four connection rods adjust manually and mechanically and the motor drives the steel coils doing uncoiling. Specification: 508×1250(width of roller)

• Leveler

◆It is composed of 17 working roller, driving device, 2 pinch code rollers and machine frame.

◆the function of supporting roller: make the even rollers receive the balanced force and reduce the friction of the leveling rollers

◆Drive model: all the independent rollers and gear box are driven by 30kw frequency conversion

• 1x1500 cutting machine

◆shear model: cut from up to down hydraulically.

◆Cooperate with the signal direct from the feeder

and shear automatically

◆Adopt gap adjusting design to cut the materials and can shear 1mm steel plate safely .

• Receible table

◆It is welded by steel(6m)

• Hydraulic Control System

◆Ensure the using of hydraulic parts

◆The working pressure of the hydraulic system is 6.3-16Mpa

◆Hydraulic tank capacity is 100 liters

• Electrical control system

PLC control mode, It is controlled by LCD screen.

IV. The foundation engineering of the equipment

◆The seller will provide the buyer the foundation plan of the equipment in 30 days after signing contract.

◆The construction and monitoring of all the foundation engineering of the equipment are in the control of the buyer.

◆The foundation holes are reserved holes, to match the foot holes of equipment.

◆After the equipment has been installed, the buyer is responsible for the foundation hole irrigation mud.

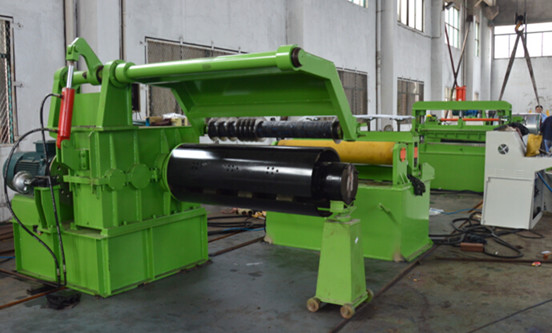

Machine photos
