    Galvanized Metal Post Stud And Track Roll Forming Machine For Electrical Control Box

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-PM
    Certification : SGS, ISO9001, CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    Galvanized Metal Post Stud And Track Roll Forming Machine For Electrical Control Box

    Galvanized Metal Steel Post Roll Forming Machine for Electrical Control Box


    Main features of Roll Forming Machine


    1. Accuracy Profile
    2. Stable
    3. Easy operation, low maintenance cost
    4. Beautiful appearance


    Technical parameter


    Item

    Technical data

    Steel sheet thickness

    galvanized steel 0.9-1.2mm

    Hydraulic power

    7.5kw

    Transmission way

    chain

    Capacity of Decoiler

    3 tons passive

    Forming Speed

    8-12m/min

    Roller Groups

    about 13 roller

    Roller Material

    Gcr15 high grade steel with finish machining treatment, quenched HRC58-62

    Roller Diameter

    60mm

    Principal Axis

    45# high grade steel with quenching treatment

    Main Motor Power

    7.5 KW

    Dimension

    About 5.5*0.8*1.0m

    WeightAbout 6T

    Main Components

    Machine nameQuantity
    3T manual uncoiler1 set
    Pre-punching1 set
    Main roll forming1 set
    Hydraulic cutting system1 set
    4 meters out tables1 ste
    PLC control box system1 set
    Tool box1 package
    Safety cover1 set

    Working flow


    Manual deocoiler--servo feeder--punching-roll forming-cutting-tables

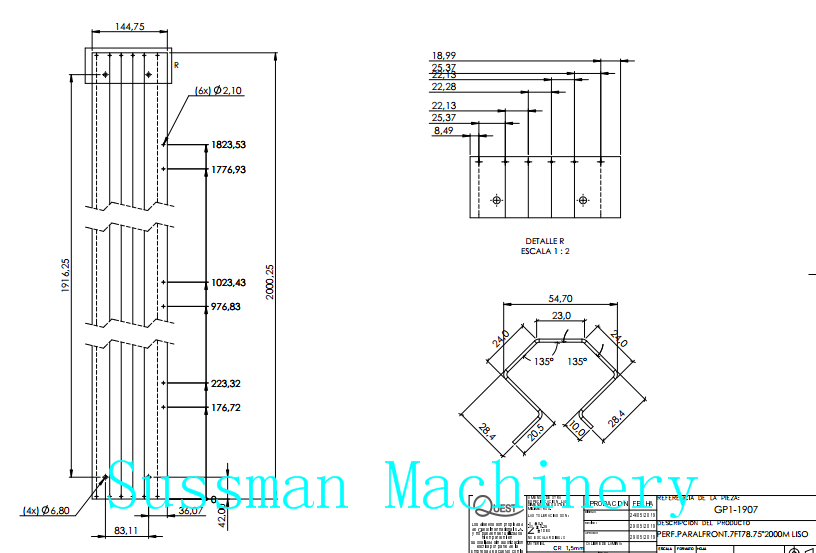

    Profile Drawing


    Machine Photo



    Packing & Delivery


    Before loading to the container, we will check the machine first

    Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery


    Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.

    At last, we will take photos for customer when loading to container
