CE Certification 1.5-3.0mm Shelving Rack Roll Forming Machine With 18 Stations

Roll Forming Machine Technical Parameter


Main Specifications

Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
Working Speed: 8-12 meters / min
Forming Steps: 18 stations
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
Driven system: Gearbox drives
Main Power with reducer: 11KW WH Chinese Famous
Cutting: Hydraulic Cutting Cr12mov
Material of Cutting Knife: Cr12Mov, Quench HRC58-62
Hydraulic Station Power: 4KW
The whole machine is controlled by industry computer-PLC.
PLC--Delta Japan English and Chinese Language
Touch Screen-Delta

Encoder--Omron, Japan

Electric parts--Schneider

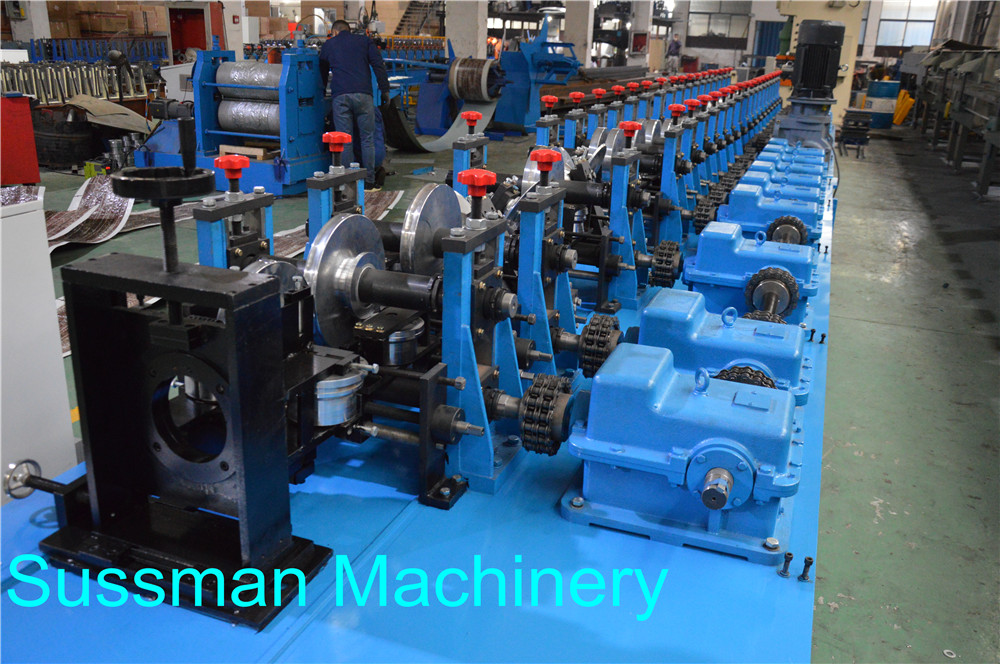

Machine’s Components

Working Flow of Roll Forming Machine

Decoiling-- Leveling---Servo following-Punching---Roll Forming----Cutting----Product Collecting


Profile drawing

Three profiles can make in one machine, change the size by spacers

Packaging & Delivery

Standard package with film, plastic and steel wire. (or customized)
1.Need about two 40ft containers for loading one set machine completely

2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film

3. Spare parts and some small parts packed in plastic tooling box

4. All Components Fixed by steel wire with Container.
Delivery Detail:Shipped in 75 working days after payment

Advantage for Roll Forming Machine

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Afrer-sales service
