Yield strength 250 - 550MPa Upright Rack Roll Forming Machine With
Holes Punching
Roll Forming Machine Technical Parameter
No. | Item | Specification | Optional |
1 | Suitable material | Type:Galvanized Coil, PPGI, Carbon steel Coil |
|
|
| Thickness(mm):1.5-2.0,1.5-3.0 |
|
|
| Yield strength: 250 - 550MPa |
|
|
| Tensil stress( Mpa):G350Mpa-G550Mpa |
|
2 | Nominal forming speed(m/min) | 10-20 | Or according to your requirement |
3 | Forming station | 18 |
|
4 | Decoiler | Manual decoiler | Hydraulic decoiler or double head decoiler |
5 | Main machine motor | Wuxi Brand | Siemens |
6 | PLC brand | Panasonic | Siemens |
7 | Inverter brand | Yaskawa |
|
8 | Driving system | Chain drive | Gearbox drive |
9 | Rollers’ materail | GCr15 | D2 steel |
10 | Station structure | Casting iron structure | Forged Iron station Or Wall panel station |
11 | Punching system | Punching press | Hydraulic punching station |
12 | Cutting system | Post-cutting | Pre-cutting |
13 | Power supply requirement | 380V 50Hz | Or according to your requirement |
14 | Machine color | Blue | Or according to your requirem |
We have experience of exporting our pallet racking roll formers to
Mexico, Peru, Costa Rica, India, etc.
We make different solutions according to customers’ drawing,
tolerance and budget, offering professional one-to-one service,
adaptable for your every need.
In warehouse pallet racking system, we are able to manufacture more
machines like upright section roll forming machine and shelf panel
roll forming machine etc.
Machine’s Components
Equipment name | Quantity | | 3T electric de-coilers | | Servo feeding device | 1 set | Leveling device | 1 unit | Press machine | 1 unit | Main roll forming machine | 1 set | Hydruaulic Cutting holder | 1 set | Control system ( including control box) | 1 set | Out tables | 2 units | Punching die set | 3 sets | Spare parts | 1 package |
|
Profile drawing
Application
Pallet racking roll forming machine is widely used in producing
upright frame, box beam and step beam. Our intelligent roll forming
machine could make wide range of sizes using cantilever type
structure, and automatically change by motors from one size to the
other not only at width but also at height. The one and only step
is to put your required data into our touch screen and wait for few
seconds. Machineable thickness is from 1.5-3.0mm with raw material
Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless
Steel and Aluminum. Our produced profile meet ISO, CE , FEM
standards, and our machine is applied to Warehouse ,supermarket
,industry or home.

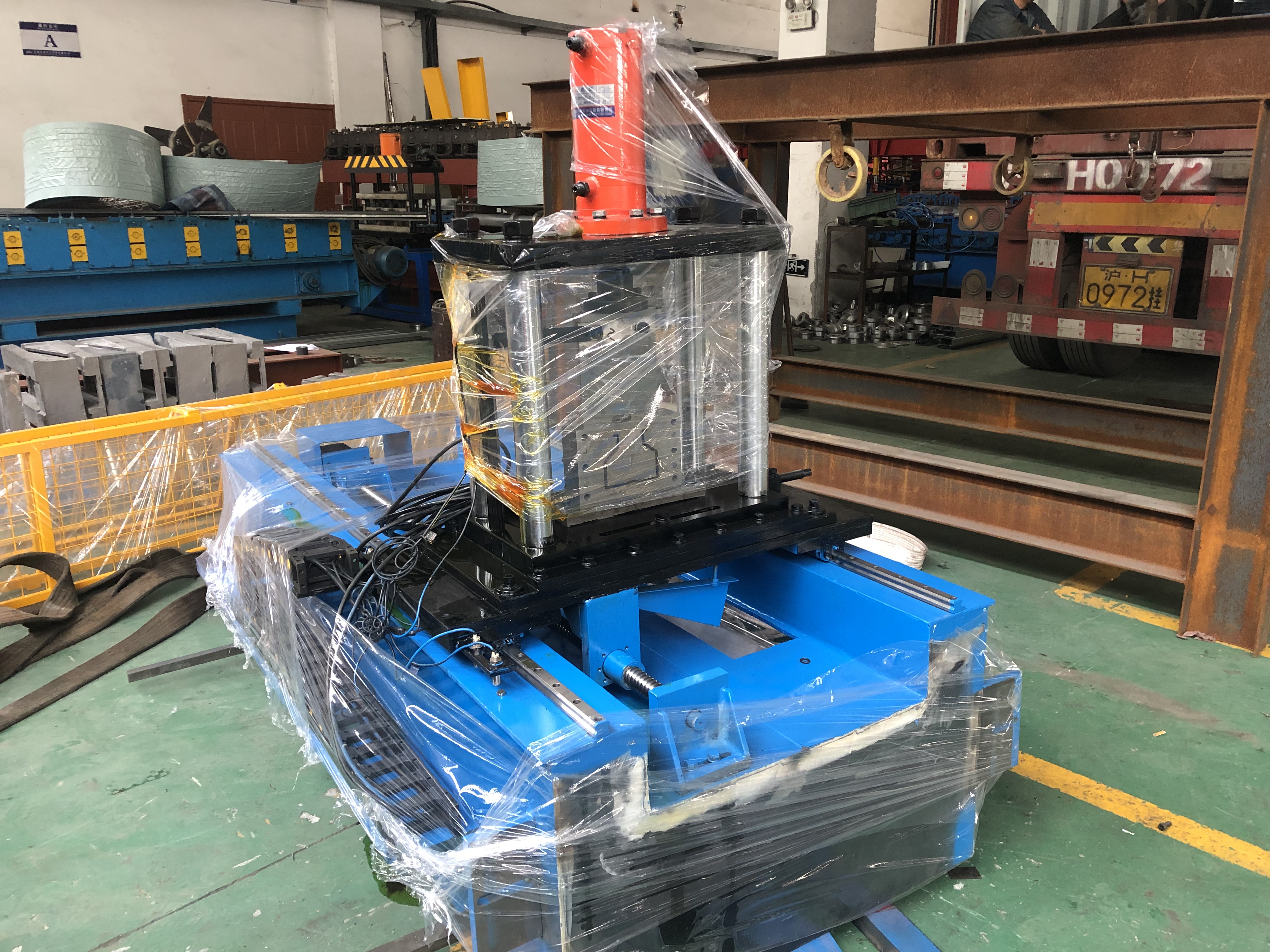

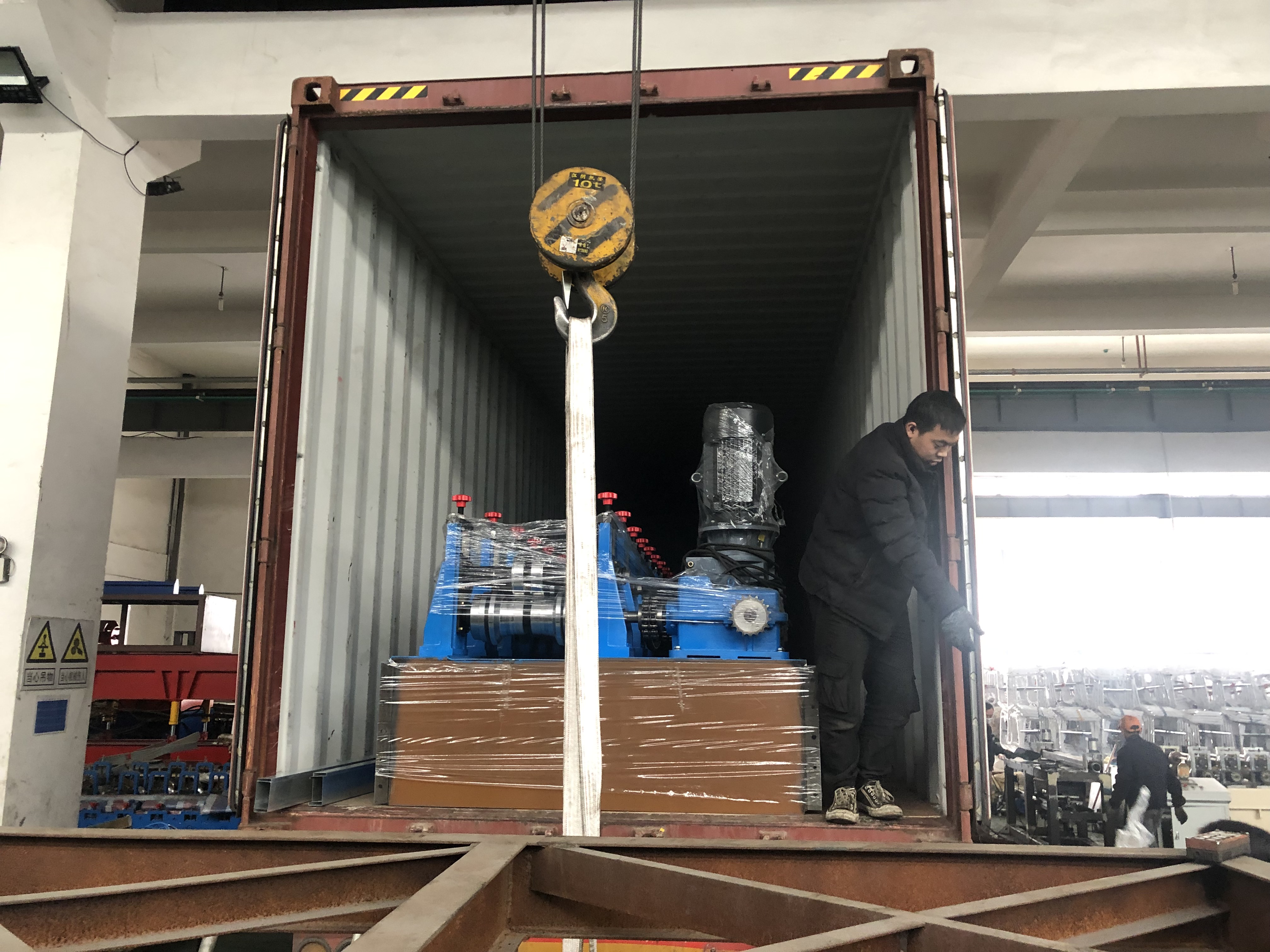

Packaging & Delivery
Standard package with film, plastic and steel wire. (or customized)
1.Need about two 40ft containers for loading one set machine
completely
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam
film
3. Spare parts and some small parts packed in plastic tooling box
4. All Components Fixed by steel wire with Container.
Delivery Detail:Shipped in 75 working days after payment
Exhibition New:
You are warmly invitated to visit our booth at 2017 Thailand
International Building Materials Exhibition at Bangkok May 2nd-7th,
our booth No is N603-3
