Automatic PLC Control Upright Rack Roll Forming Machine With
Hydraulic decoiler
Roll Forming Machine Technical Parameter
No. | Item | Specification | Optional |
1 | Suitable material | Type:Galvanized Coil, PPGI, Carbon steel Coil |
|
|
| Thickness(mm):1.5-2.0,1.5-3.0 |
|
|
| Yield strength: 250 - 550MPa |
|
|
| Tensil stress( Mpa):G350Mpa-G550Mpa |
|
2 | Nominal forming speed(m/min) | 10-20 | Or according to your requirement |
3 | Forming station | 18 |
|
4 | Decoiler | Hydraulic decoiler | Electric decoiler or manual decoiler |
5 | Main machine motor | Wuxi Brand | Siemens |
6 | PLC brand | Panasonic | Siemens |
7 | Inverter brand | Yaskawa |
|
8 | Driving system | Gearbox drive | Chain drive |
9 | Rollers’ materail | GCr15 | D2 steel |
10 | Station structure | Casting iron structure | Forged Iron station Or Wall panel station |
11 | Punching system | Punching press | Hydraulic punching station |
12 | Cutting system | Post-cutting | Pre-cutting |
13 | Power supply requirement | 380V 50Hz | Or according to your requirement |
14 | Machine color | Blue | Or according to your requirem |
We make different solutions according to customers’ drawing,
tolerance and budget, offering professional one-to-one service,
adaptable for your every need.
In warehouse pallet racking system, we are able to manufacture more
machines like upright section roll forming machine and shelf panel
roll forming machine etc.
We have experience of exporting our pallet racking roll formers to
Mexico, Peru, Costa Rica, India, etc.
Machine’s Components
Equipment name | Quantity | | 3Tons de-coilers | | feeding device | 1 set | Leveling device | 1 unit | Press machine | 1 unit | Main roll forming machine | 1 set | Hydruaulic Cutting holder | 1 set | Control system ( including control box) | 1 set | Out tables | 2 units | Punching die set | 3 sets | Spare parts | 1 package |
|

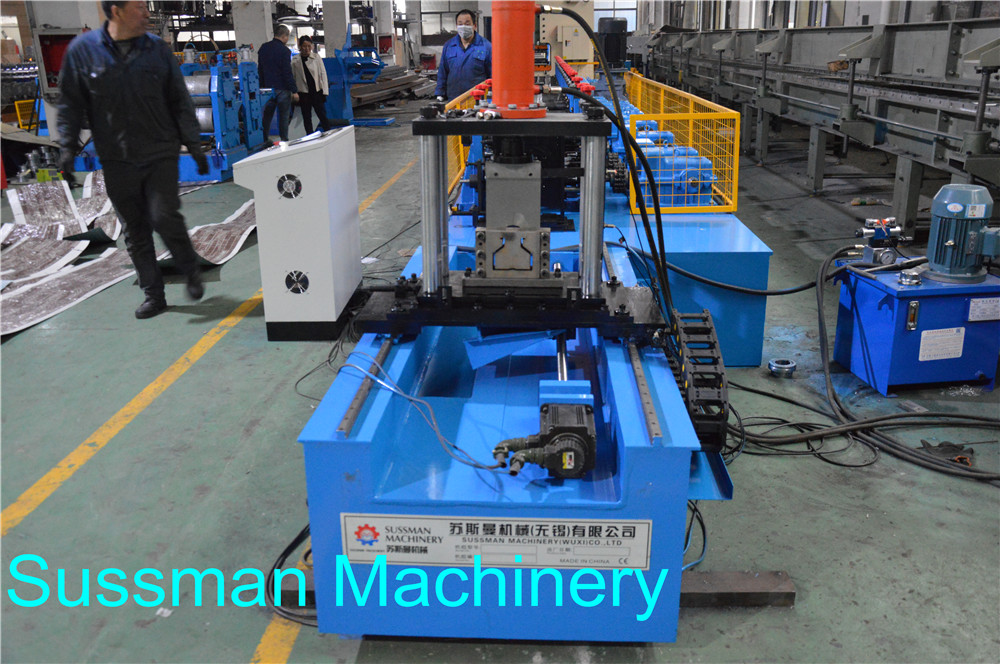

Machine Photo
Packaging & Delivery
Standard package with film, plastic and steel wire. (or customized)
1.Need about two 40ft containers for loading one set machine
completely
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam
film
3. Spare parts and some small parts packed in plastic tooling box
4. All Components Fixed by steel wire with Container.
Delivery Detail:Shipped in 75 working days after payment
