    Galvanized Coil 40m / Min 4mm Cut To Length Line With Auto Stacker , High Efficiency

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF-DF
    Certification : CE, SGS, ISO
    Price : USD25999-65999 Per Set
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 5 SETS PER MONTH
    Delivery Time : 75 days after deposit
    • Product Details
    • Company Profile

    Galvanized Coil 40m / Min 4mm Cut To Length Line With Auto Stacker , High Efficiency


    Cut to length line


    Automatic Cut to length line is a complete line to slit the big steel coil into strips and then rewinding by PLC , it can slit various
    size you need. It can slit cold rolled steel, Galvanized steel, Stainless steel, Hot rolled steel , etc.
    .


    Automatic slitting line is composed as coil car,decoiler,pinch device,head cutter,slitter,scrap winder,tension stand ,recoiler and exit coil car.The speed can be max 120m/min.




    Standard specifications of automatic cut to length line (if other size,can be customlized)
    Model
    Thickness(mm)
    Width(mm)
    No. of slitting
    Tolerance(±mm/m)
    Speed(m/min)
    Weight(T)
    SM-2X650
    0.2-2
    100-650
    10-30
    ±0.05
    0-120
    10
    SM-2X1250
    0.2-2
    500-1250
    10-30
    ±0.05
    0-120
    10,15
    SM-3X1250
    0.3-3
    500-1250
    65-30
    ±0.05
    0-120
    10,15
    SM-3X1600
    0.3-3
    500-1600
    5-30
    ±0.05
    0-120
    15,20
    SM4X1600
    0.5-4
    500-1600
    5-30
    ±0.05
    0-100
    20,25
    SM-6X1600
    1-6
    500-1600
    5-20
    ±0.1
    0-80
    20,25
    SM-8X2000
    3-8
    800-2000
    5-15
    ±0.1
    0-40
    25,30
    SM-10X2000
    3-10
    800-2000
    5-10
    ±0.1
    0-40
    25,30
    SM-12X2000
    4-12
    800-2000
    5-10
    ±0.1
    0-30
    25,30
    SM-16X2200
    6-16
    800-2200
    4-8
    ±0.1
    0-20
    30,35

    Machine picture


    Leveler

    Galvanized Coil 40m / Min 4mm Cut To Length Line With Auto Stacker , High Efficiency

    3 meters Auto stacker

    Galvanized Coil 40m / Min 4mm Cut To Length Line With Auto Stacker , High Efficiency

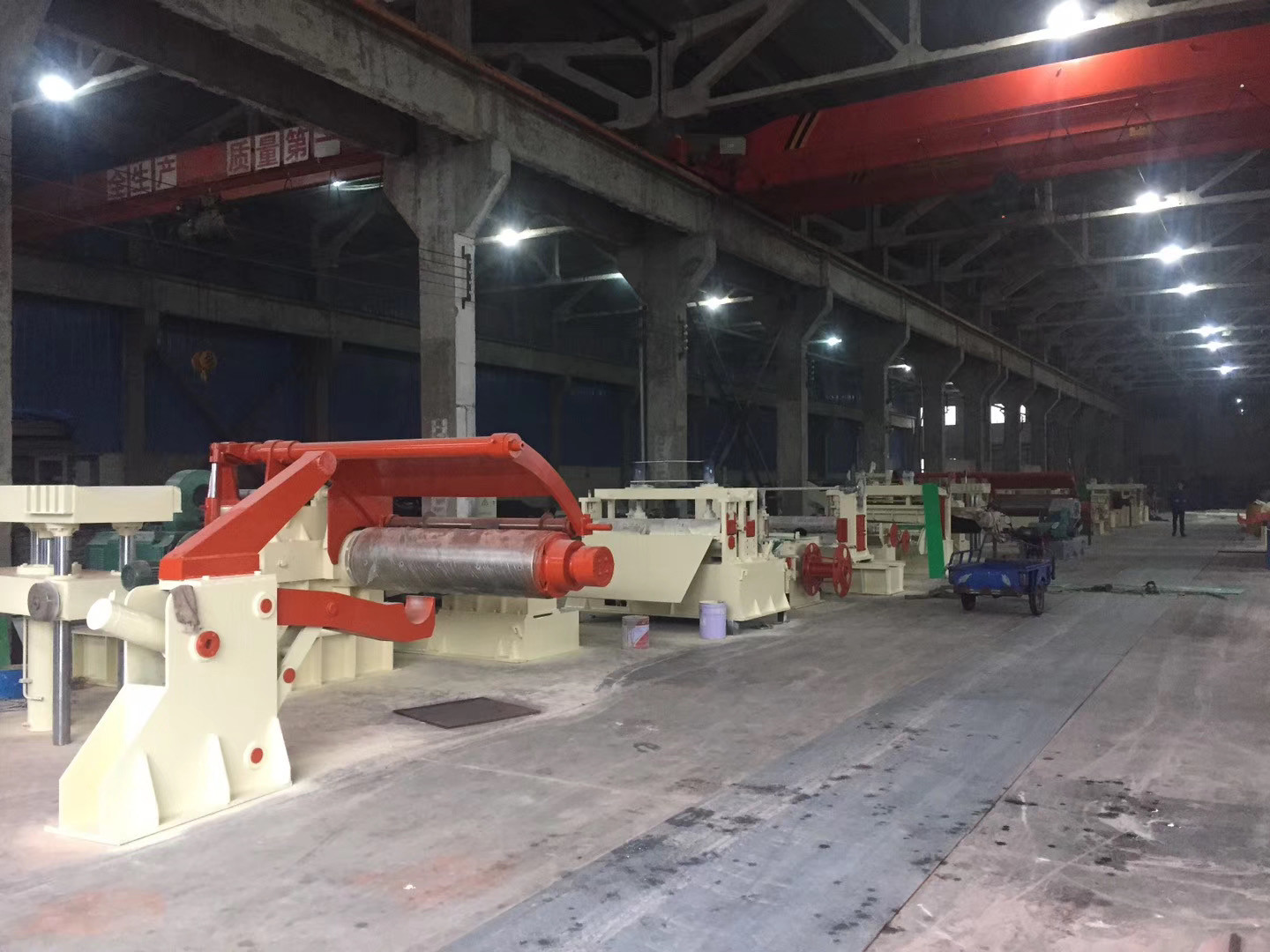

    Total complete line

    Galvanized Coil 40m / Min 4mm Cut To Length Line With Auto Stacker , High Efficiency

    Standard specifications of cut to length line(if other size,can be customlized)
    Model
    Thickness(mm)
    Width(mm)
    No. of slitting
    Tolerance(±mm/m)
    Speed(m/min)
    Weight(T)
    SM-1.5X650
    0.2-1.5
    100-650
    5-15
    ±0.05
    0-40
    5
    SM-1.5X1250
    0.2-1.5
    500-1250
    5-15
    ±0.05
    0-40
    5,10
    SM-2X1250
    0.2-2
    500-1250
    5-15
    ±0.05
    0-40
    5,10
    SM-3X1250
    0.3-3
    500-1250
    5-15
    ±0.05
    0-40
    10
    SM-3X1600
    0.3-3
    500-1600
    5-15
    ±0.05
    0-30
    10,15
    SM-4X1250
    0.5-4
    500-1250
    5-15
    ±0.1
    0-30
    10
    SM-4X1600
    0.5-4
    500-1600
    5-15
    ±0.1
    0-30
    10,15,20
