    Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

    Ask Lasest Price
    Brand Name : Sussman Machinery
    Model Number : SM-ST
    Certification : CE, ISO9001
    Price : USD17500-25500 per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10 sets per month
    Delivery Time : 60-90 working days
    • Product Details
    • Company Profile

    Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation


    Technique data for High speed light weight Galvanized coils Stud track roll formimg machine with perforation system


    Product and installation of the stud track profile


    Specification of the stud track machine


    ItemsSpecificationsRemarks
    Material of coilMaterial Thickness0.3-0.85mm galvanized steel
    De-coilerWeight3 ton hydraulic decoiler&coil car
    Forming systemRolling Speed10 m/min
    embossing1 set of rolls
    Roller StationsAbout 13 stations forming
    Roller MaterialCr40 Steel with quenching
    Shaft Material

    45# Steel Diameter 75mm shaft


    Maim Motor Power5.5 kw
    Hydraulic cutting Power4 kw

    Cutting

    system

    Material Of CuttingCR12 with quench treatment
    HardnessHRC58-62
    Tolerance+-1.5mm
    Cutting blade1 set of cutting blade
    Electrical control systemElectric Source

    380V, 50HZ,3 phase


    Control SystemPLC Delta
    WeightAbout 4 tons
    Way Of Drive1 inch single chain
    Size of machineLength 5000mm* Width 600mm* Height 700m

    Spare parts


    4 meters simple out table


    Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation


    Punching device


    Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation


    3 ton passive decoiler

    Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation


    More installation system


    Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

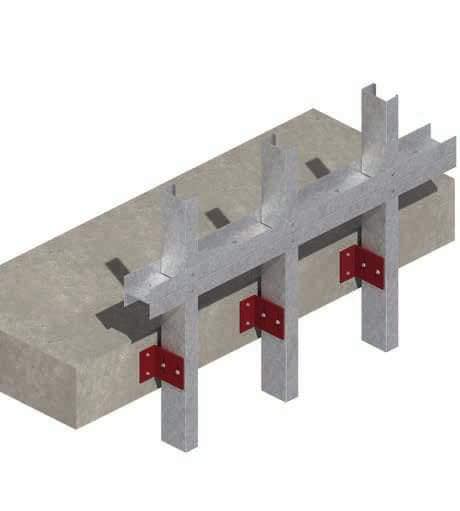

    Wall frame

    Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

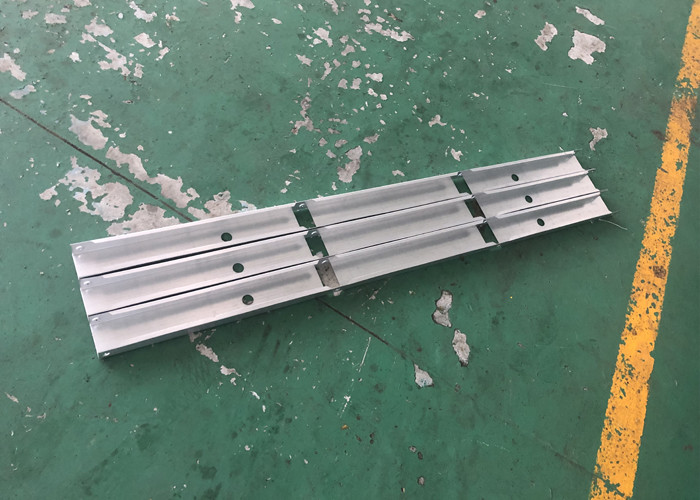

    Stud track with perforation

    Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

    Installation

    Wall installation
