    Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman Machinery
    Model Number : SS-TW
    Certification : ISO
    Price : USD55000-75000
    Payment Terms : Western Union, D/A, L/C, D/P, T/T
    Supply Ability : 10 SETS PER MONTH
    Delivery Time : 75 days
    • Product Details
    • Company Profile

    Galvanized Coils Corrgudated 10m/Min Ibr Roll Forming Machine

    10 ton hydraulic decoiler with coil car


    Coil inner Diameter: ¢460-520mm

    Max out diameter of the coil: ¢1500mm

    Max Coil Width: 1250mm

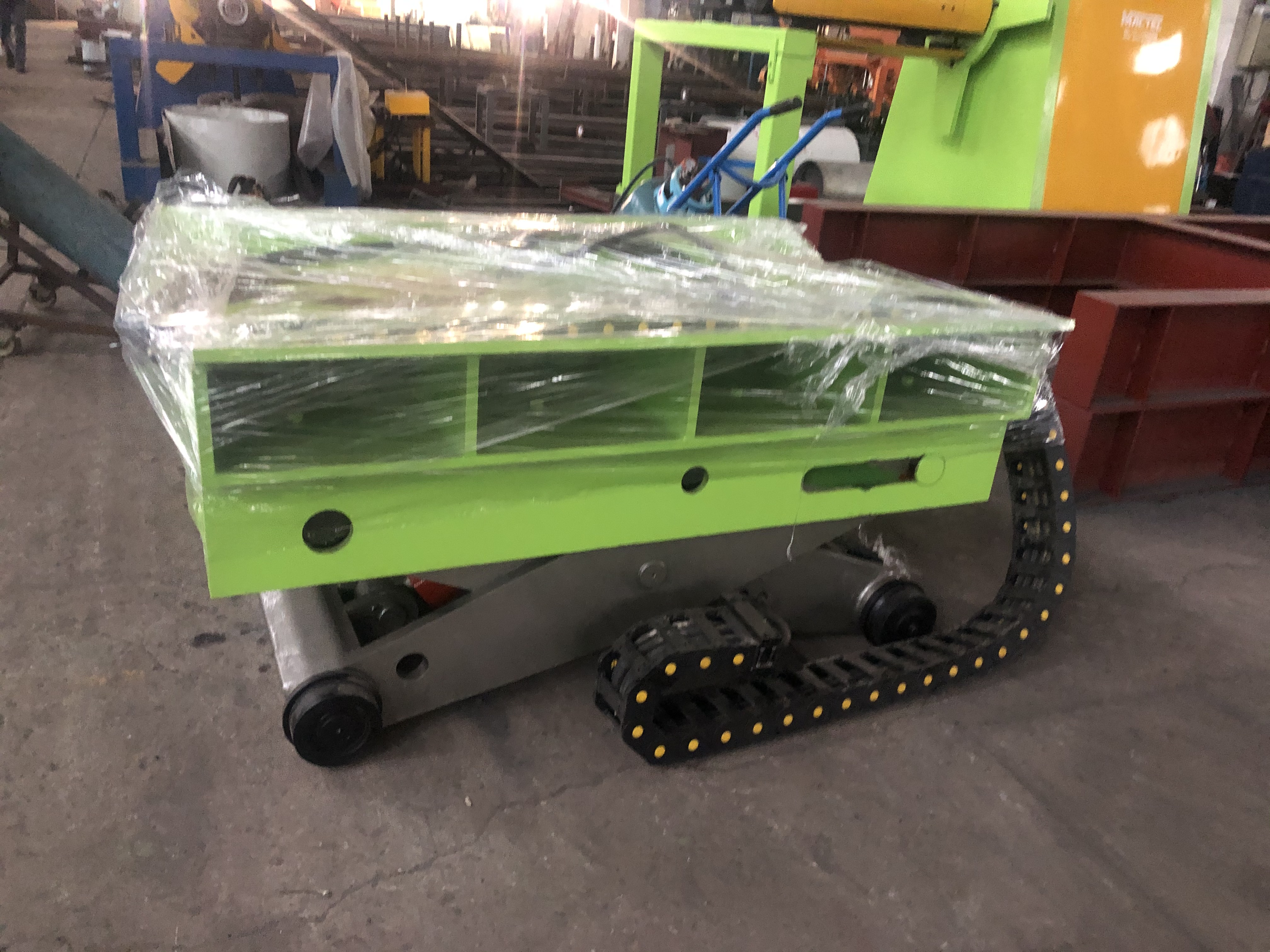

    Coil car

    Main roll forming machine


    NumberItemsUnitTypeRF-DL
    1Steel Thicknessmm0.4-0.8mm, coil width 1220 and 1000mm
    2Forming Speedm/min8-12
    3Roller standsstand20 stands bottom layer; 18 stands top layer
    4Roller Materialmm45# steel, coated with chrome quenching
    Shaft material and diametermmФ76 45# steel, coated with chrome
    5Main Motor PowerKw7.5
    6Hydraulic cutting PowerKw4
    7Hydraulic pressureMpa12
    8Power Supply220V, 60HZ,3 phase
    9Tolerancemm1.5
    10Material of cuttingCr12mov HRC60-62
    11Control systemPLC with touch screen
    12Machine net weightT8


    Crimping machine


    1. forming speed:0—10m/min

    2. material thickness :0.4—0.8 mm/ galvanized steel,pre-painted steel coil

    3. curving mould materials:40Cr

    4. heat treatment hardness,HB220-280

    5. Nitridation processment on the surface of the moulds

    6 control system:PLC control,Panasonic made in Japan

    7. way of feeding:supporting rollers to feed

    8. motor power:2.2kw.

    9. hydraulic motor:5.5KW

    10 . way of control:Yaskawa made in Japan

    11. max curving degree:1200

    12. vertical and horizontal type or horizontal type as option



    NameSpecification
    1Material thickness0.3-0.8mm
    2Hydraulic motor5.5kw
    3Max curving degree120degree
    4Type of curve machinevertical and horizontal type
    5Curving mould materials40Cr
    6Tolerance+/-1-2 degree

    12 meters Auto stacker


    Technique process

    air cylinder ejector——Carry panel start——Panel falling—Out put

    1. conveyer belt speed:36m/min
    2. tanker chain speed:18m/min
    3. Max auto height speed:300mm
    4. movable push plate speed:10m/min
    5. Out able Length:12m(the length can be adjustable according to the customer requirement, the max length is 12m
    6. Outer size 13331×4055×1485(mm)
