    11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-RG
    Certification : CE, SGS, ISO
    Price : USD25000-35000 per set
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 10 sets/month
    Delivery Time : 75 days after deposit
    • Product Details
    • Company Profile

    11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing


    Width adjustable Post cutting C Purlin Roll Forming Machine for steel framing



    1. Technical Parameter

    Gutter roll forming machine
    No.ItemSpecificationOptional
    1Suitable materialType:Galvanized Coil, PPGI, Carbon steel Coil
    Thickness(mm):1.5-3mm
    Yield strength: 250 - 550MPa
    Tensil stress( Mpa):G350Mpa-G550Mpa
    2Nominal forming speed(m/min)8-10Or according to your requirement
    3Forming station20According to your profile
    4DecoilerManual decoilerHydraulic decoiler or double head decoiler
    5Main machine motorChina famous brandSiemens
    6PLC brandDeltaSiemens/Panasonic
    7Inverter brandYaskawa
    8Driving systemChain driveGearbox drive
    9Rollers’ materailSteel #45GCr15
    10Station structureIron casting
    Forged Iron station
    Or Wall panel structure

    11Punching systemYesHydraulic punching station or Punching press
    12Cutting systemPost-cuttingPre-cutting
    13Power supply requirement380V 50HzOr according to your requirement
    14Machine colorIndustrial blueOr according to your requirements


    2. Flow Chart

    Uncoiling – Infeed Guiding– Roll forming – Hydraulic cutting – Run-out table






    3. Machine Components and profile drawing

    The portable gutter roll forming machine comprised of 3T manual uncoiler, infeed guiding, roll forming machine, cutting equipment, hydraulic system, electrical controlling system, output table and portable device.




    4. C Purlin Machine Description


    Gutter roll forming machine is suitable for companies who work on Steel system. Machineable thickness of gutter could be 1.5-3mm or as you request with raw material:Aluminum, Galvanized steel, Painted steel, Galvalume and Cooper etc. We will design the machine according to your profile drawing.We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.

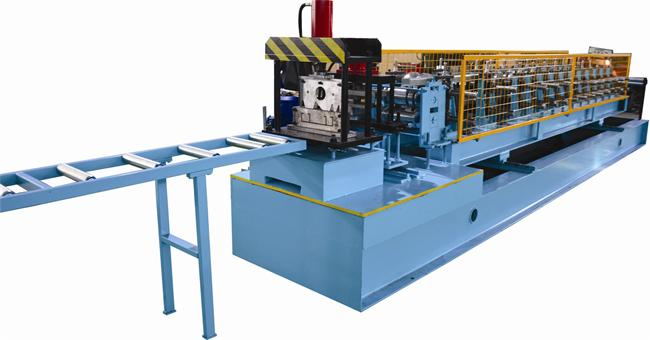

    5. C Machine Photo



    Quality 11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing for sale
