Hydraulic Cutting Square Ridge Cap Roll Forming Machine Single Chain Drive

Technical Data

• Rolling speed: 4-5m/min
• Rolling thickness: 0.3-0.8mm Galvanized steel coils
• Main motor: 7.5kw
• Hydraulic motor: 5.5kw
• Dimension: 7500×700×1000(mm)
• Roller stations: About 15 stations
• Roller material: 45#forge steel, coated with chrome
• Shaft diameter: Φ70mm,material is 45# forge steel
• Transmission: By chain 1 inch
• Material of chain: 45# forged steel with frequency quenching, 12A
• Material of cutting: Cr12Mov with quench HRC58-62°
• Tolerance: 6m+-0.5mm
• Frame: H type steel
• Voltage: 380v, 50hz, 3phases

Working flow

Uncoiling—Feedingwithguide—Roll forming—cutting—Products collecting

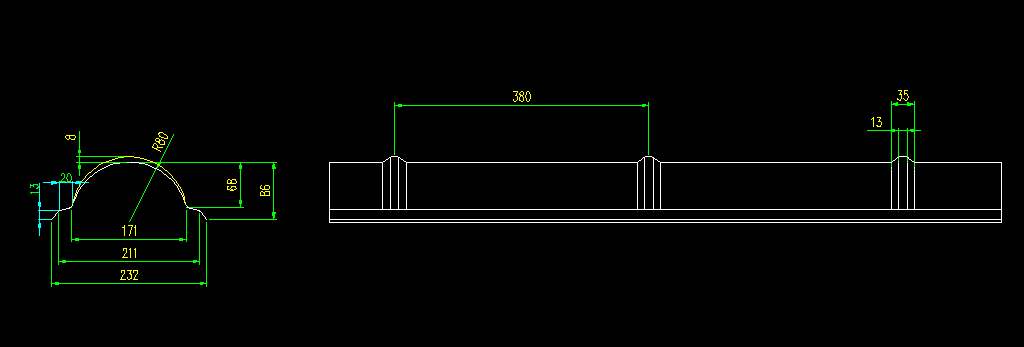

Profile Drawing
