1.5-2.5mm Metal Solar Slotted Unistrut Channel Roll Forming Machine

Ask Lasest Price
Brand Name :	Sussman
Model Number :	RF-ST41
Certification :	CE, SGS, ISO
Price :	USD29500-USD39500 per set
Supply Ability :	10 sets/month
Delivery Time :	75 days after deposit

Add to Cart

Product Details
Company Profile

1.5-2.5mm Metal Solar Slotted Unistrut Channel Roll Forming Machine

1.5-2.5mm Metal Solar Slotted uni Strut Channel Roll Forming Machine With Gear Box Device

Description

As a professional manufacturer,we can make Metal Customize Strut Slotted Furring Channel Purlin Roll Forming
Machine by customer`s demand, with a profile drawing and thickness, we can
design the machine quickly

Detailed Images
Suitable material
Galvanzied coils and Black steel
Coil Width41mm*41mm, 41mm*21mm, 41*62mm, as customized
Thickness1.5-3mm as customized
Power380V 50Hz 3Phase as custom
Main motor18.5KW Siemens
Hydraulic motor7.5KW Siemens
Speed15m/min
Forming stations22 stations
Roller materialCr12 steel with vacuum heat treatment HRC57°-60°
Shaft material45# steel quenched and tempered
Shaft diameter90mm
Gear box160 type
Screem HMIDelta or Siemens, Touch Screen
PLCDelta or Siemens
Processing precisionWithin 1mm
Size17.6m×1.5m×1.2m
Weight18.5T

Profile drawing

1.5-2.5mm Metal Solar Slotted Unistrut Channel Roll Forming Machine

Machine list

S.N	Equipment name	Quantity
1	3T hydraulic un-coiler	1 set
2	Leveling device NC 300mm	1 set
3	Servo feeding device 300mm	1 unit
4	Press machine JH21-63	1 unit
5	Main roll forming machine	1 set
6	Servo following cutting	1 set
7	control box	1 set
8	Out tables	2 units
9	Spare parts	1 package
10	Punching die set	1 set
11	Safety cover	1 set
12	Cutting blade	2 sets

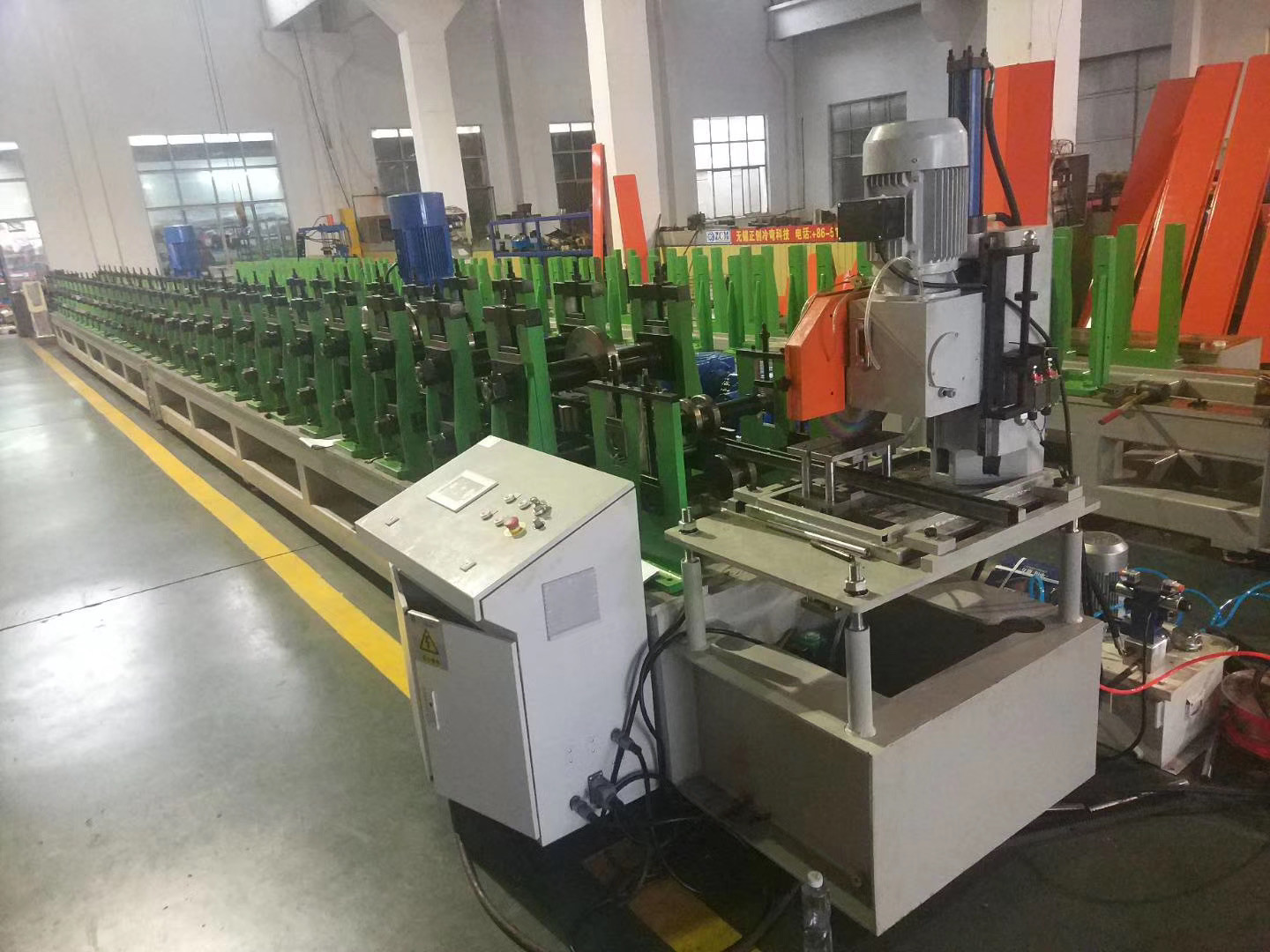

Machine photos

De-coiler

1.5-2.5mm Metal Solar Slotted Unistrut Channel Roll Forming Machine

Machine layout

1.5-2.5mm Metal Solar Slotted Unistrut Channel Roll Forming Machine

Finished products

1.5-2.5mm Metal Solar Slotted Unistrut Channel Roll Forming Machine
