Metal C Shape Furred Ceil 12m/Min Light Keel Roll Forming Machine

Ask Lasest Price
Brand Name :	sussman
Model Number :	SM-DW
Certification :	CE ISO 9001
Price :	negotiable
Payment Terms :	L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability :	10 set per month
Delivery Time :	45-55 days

Add to Cart

Product Details
Company Profile

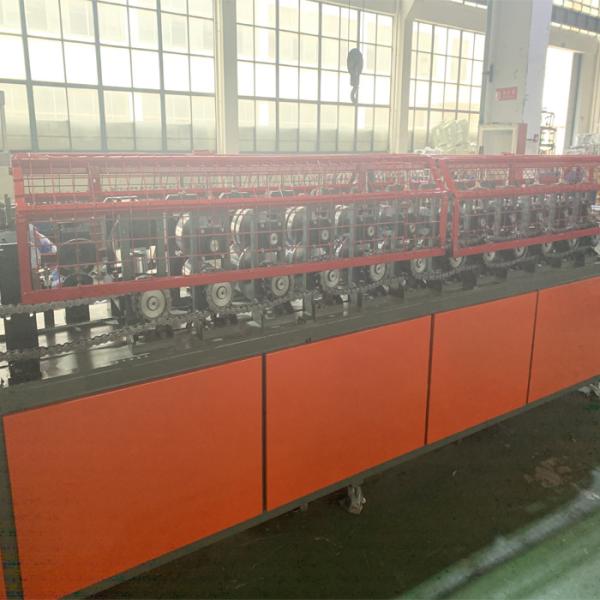

Metal C Shape Furred Ceil 12m/Min Light Keel Roll Forming Machine

Metal C Shape Furred Ceil Studs Track / Drywall Steel Material Light Keel Roll Forming Machine

Stud and Track Roll Forming Machine, as known as Hat Shape Roll
Forming Machine, Main Channel Roll Forming Machine, Omega Furring
Channel Roll Forming Machine, Wall angle Roll Forming Machine,
Ceiling Roll Forming Machine Light Steel Keel Roll Forming Machine
etc.These can produce studs, tracks and many other shapes derived form
Shape C.
Thickness is normally 0.25-1.2mm .
If you need to more efficiency then we recommend you adpot the
Flying shear with No-stop system. Max line speed can be reach at
40m/min.
If you want to produce more than one profile in one machine, we
recommend you the double rows forming machine and triple rows
forming machine to save space and economy.
Light steel keel roll forming machine
stud

track

Omega

Sample
Roller stations121012
Thickness0.4-0.6mm0.4-0.6mm0.4-0.6mm
Cutting typeHydraulic moldHydraulic moldHydraulic mold
Shaft typesolidsolidsolid
Roller processingQuenching,chromingQuenching,chromingQuenching,chroming
PLCDeltaDeltaDelta
Computer screenTouch screenTouch screenTouch screen
Main motor4KW4KW4KW
Hydraulic motor3KW3KW3KW
Board thickness25mm25mm25mm
Transmissiongeargeargear
Shaft diameter40mm40mm40mm
