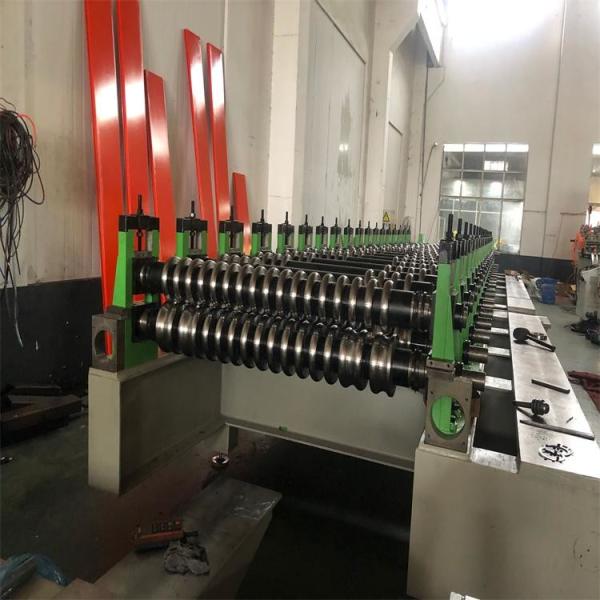

4mm Steel Corrugated Silo Panel Roll Rorming Machine With curving and punching dies

Steel silo,is a large grain storage container. As its name suggests, storage silo is used to store agriculture products for home appliance or large granary projects. Grain silo is widely used to store grains like rice, corn, wheat, soybean, barley, sorghum, sunflower seeds, palm kernel, buckwheat, millet, bran, peas, beans, beet seeds, peanut, rye seeds, flour, feed, minor cereals and and other bulk granular crops, etc. Generally speaking, there are timber silo, plastic silo, cement silo and steel silo. Among these different types of silos, spiral steel silo is now the most popular choice for its outstanding features.

Steel silo has the function of moistureproof, insects and rodents prevention and convenient in and out of grains. Air tightness is pretty good, so it is suitable for use of pesticides. The steel silo is made of high quality galvanized sheet which can be use for 30 years and never rust. Grain silos are suitable for grain depot, feed mill, oil mill plant and farm use, etc.

A. Working flow

De-coiling—Feeding&leveling———rollforming——Punching——hydraulic cut to length——Auto stacker

B. Main specification:

• Main motor power: 55 kw
• Station: 18 stations, adopt cast iron HT50
• Speed:3-8m/min
• Decelerating motor: made in Changzhou
• Drive: gear box driving
• Main shaft dia:￠75mm
• Material: 45﹟forge steel
• Roller material: GCR15 quenched 58°-62°,chromed
• Roll station: according to the profiles
• Roller thickness: 1.5-3mm, change the thickness of spacers
• Transducer: Yaskawa
• Voltage 380V 50HZ, 3phases
• Control box: PLC Mitsubishi, Touch screen Siemens
• Total power: 90kw

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
