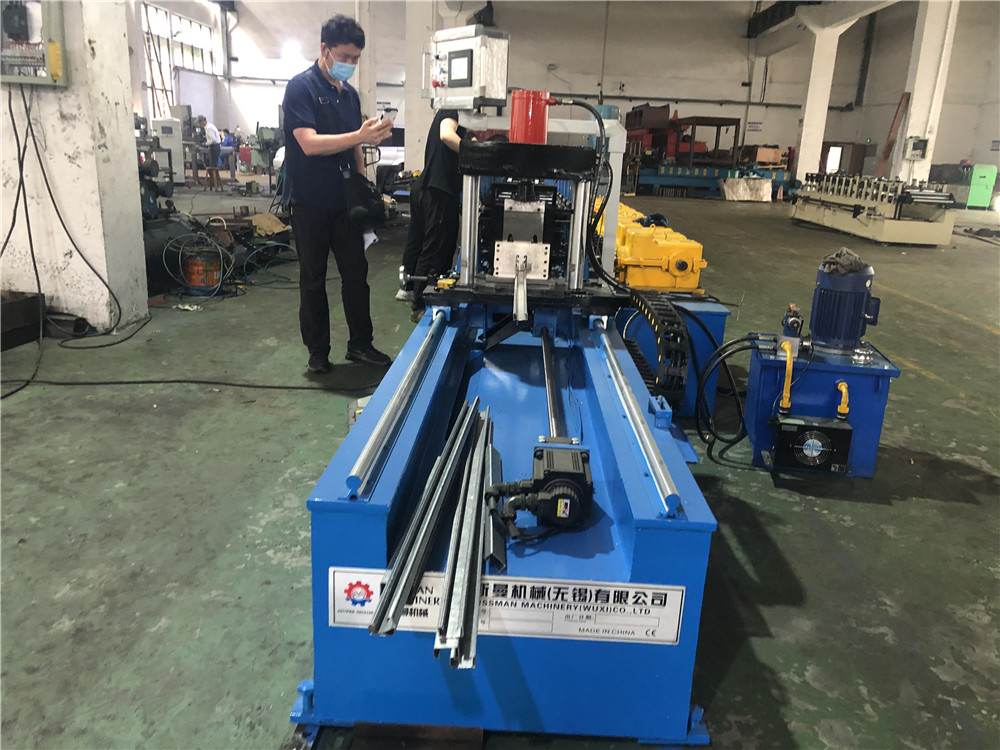

550MPa Galvanized Steel Strut Channel Roll Forming Machine With 3T Hydraulic Decoiler

1. Solar Strut Channel Technical Parameter

The strut channel machine is to make size 30x20mm, 30x30mm, 30x45mm, 41x21mm and 41x41mm

Material thickness thicknesses: 2.00 and 2.50mm hot-dip galvanized,

Also can do inturned edges with teeth And the machine is according to the EN 2081:2011 or EN ISO 4042:2001

2. Solar Strut Channel Machine Components

Solar photovoltaic strut roll forming machine can produce several shape products as profile.

The different size of channel is adjusted by the spacers between up and downside rollers. Because the design of these spacers is half circle, then two joint together, so when adjusting, needn't remove the rollers, it is very easy and convenient.

when change different specification, need to change the cutting mould.

4. Solar Strut Channel Application

1.These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems.

2.Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. S

3.Solar frame panel is used to mount, brace, support, and connect lightweight structural loads in building construction.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
