Gcr15 Steel Solar Strut Channel Roll Forming Machine With Servo Following Cutting

1. Solar Strut Channel Technical Parameter

1.Forming thickness: 1.5-2.5mm,galvanized coils yield strength≤G250MPa

2.working Line speed: 8-15M/min(not include cutting and punching stop time)

3.Max speed: 9-10M/min include cutting and punching stop time

4.roller stations: about 19 stations main roller

5.material of roller: bearing steel, quenching treatment.

6.material of main shaft: Gcr15# fine steel

7.diameter of main axis: ￠75mm

8.main motor power: 18.5kW

9.motor power of hydraulic station: 4KW

10.hydraulic station pressure: 12MPa

11.electric control system: whole line adopted PLC control, Panasonic PLC

12.cutting type: hydraulic drive, cut after forming

13.material of cutting blade: Cr12Mov , quenching process

14.Drive way: Gearbox drive

2. Solar Strut Channel Machine Components

Solar photovoltaic strut roll forming machine can produce several shape products as profile.

The different size of channel is adjusted by the spacers between up and downside rollers. Because the design of these spacers is half circle, then two joint together, so when adjusting, needn't remove the rollers, it is very easy and convenient.when change different specification, need to change the cutting mould.

.

3.Main models

4. Solar Strut Channel Application

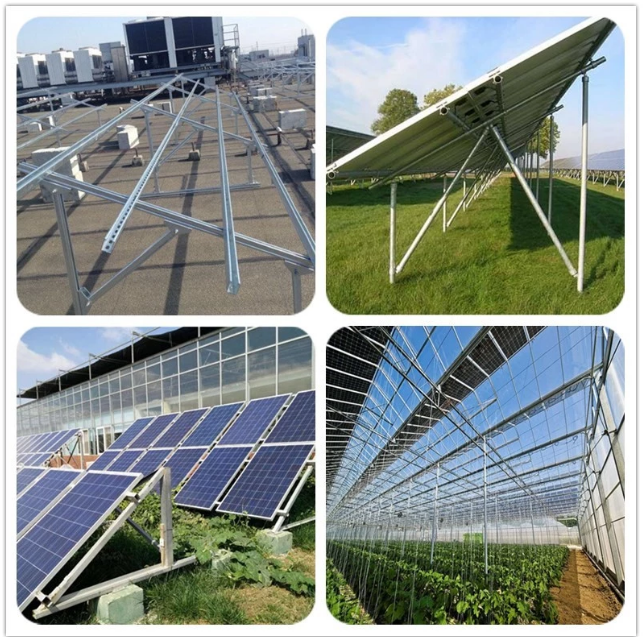

1.Solar frame panel is used to mount, brace, support, and connect lightweight structural loads in building construction.

2.These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems.

3.Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. Specially made sockets are available to tighten nuts; bolts etc.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
