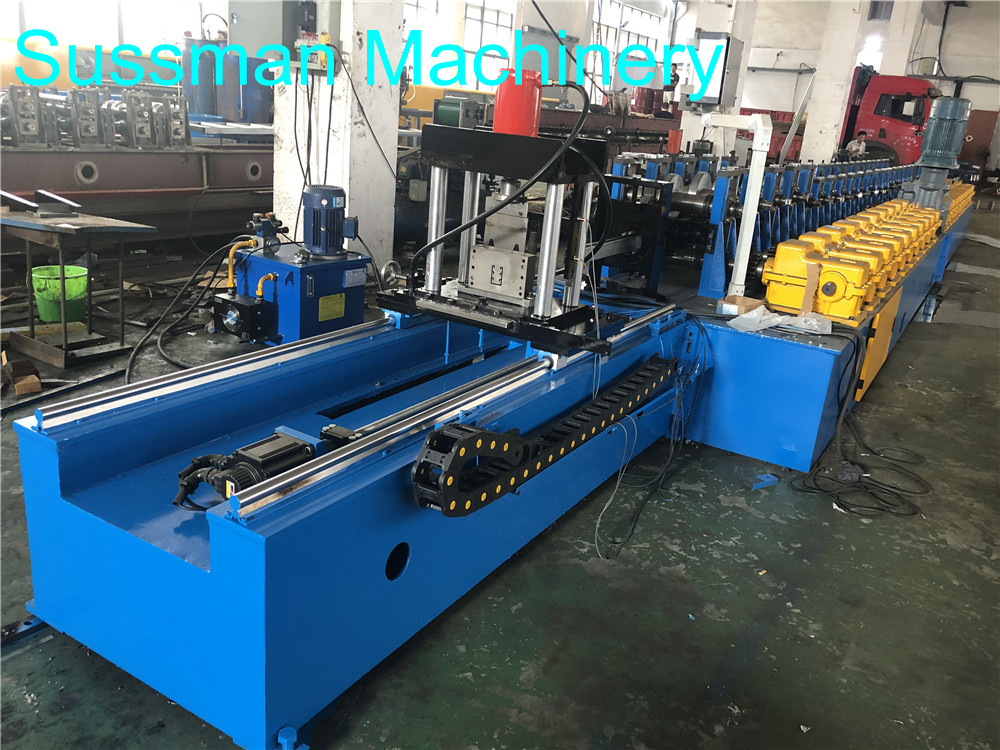

CR12Mov Mould Steel C Channel Strut Channel Roll Forming Machine
With 22KW Motor
1. Solar Strut Channel Technical Parameter
| Machine Specifications |
|---|
| Weight | About 10000kgs |
| Size | About 20m x 1.0m x 1.0m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow |
| Material | Galvanized steel |
| Thickness | 1.5-2.5mm |
| Yield Strength | 235Mpa |
| Quantity of forming rollers stations | 18-20 |
| Diameter of forming rollers shafts | 75mm |
| Working Speed | 8-12m/min |
| Forming rollers material | Gr15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: about 22 kw |
| Hydraulic station | Motor 5.5kw |
2. Solar Strut Channel Machine Components
Solar photovoltaic strut roll forming machine can produce several
shape products as profile.
The different size of channel is adjusted by the spacers between up
and downside rollers. Because the design of these spacers is half
circle, then two joint together, so when adjusting, needn't remove
the rollers, it is very easy and convenient.when change different
specification, need to change the cutting mould.Which could produce 3-5 sizes (eg: 41x27, 41x41, 41x62) in one machine,
the working speed can reach 20m/min, if you want a higher speed
like 40m/min, we give you a solution with rotary punch system,
which punch speed is up to 50m/min.
No. | Size | Thickness |
Surface Treatment |
| mm | Inch | Thickness | Gauge |
| A | 41x21 | 1-5/8x13/16" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| B | 41x22 | 1-5/8x7/8" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| C | 41x25 | 1-5/8x1" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| D | 41x41 | 1-5/8x1-5/8" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| E | 41x62 | 1-5/8x27/16" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
| F | 41x82 | 1-5/8x3-1/4" | 1.0,1.5,2.0,2.5,2.75.3.0 | 19,16,14,12 | HDG,PG,PC |
4. Solar Strut Channel Application
1.Strut channel is also used for other applications that require a
strong framework, such as workbenches, shelving systems, equipment
racks, etc. S
2.Solar frame panel is used to mount, brace, support, and connect
lightweight structural loads in building construction.
