    Chain Drive 0.3mm 8m/Min Roof Panel Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-GT
    Certification : CE,SGS,ISO
    Price : negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10 sets per months
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    Chain Drive 0.3mm 8m/Min Roof Panel Roll Forming Machine

    Chain Drive Colored Steel 820mm Glazed Roof Tile Roll Forming Machine Roof Panel Roll Forming Machine

    Glazed Tile Technical Parameter


    Feeding form
    Manual tightening, passive feeding
    Feeding rack load
    5T
    frame
    350H section steel welding
    Forming machine guide feed frame
    Side-skate peak distance
    Forming machine form
    Wall plate chain drive
    Shaft diameter
    ¢75mm, solid shaft
    Chain
    1 inch single row
    Forming machine motor power
    5.5KW
    Forming speed
    8-10m / min
    Number of Rollers
    13 Row
    Roll material
    45 # steel forged parts
    Hydraulic station motor
    4kw
    Hydraulic station oil pump
    Gear pump

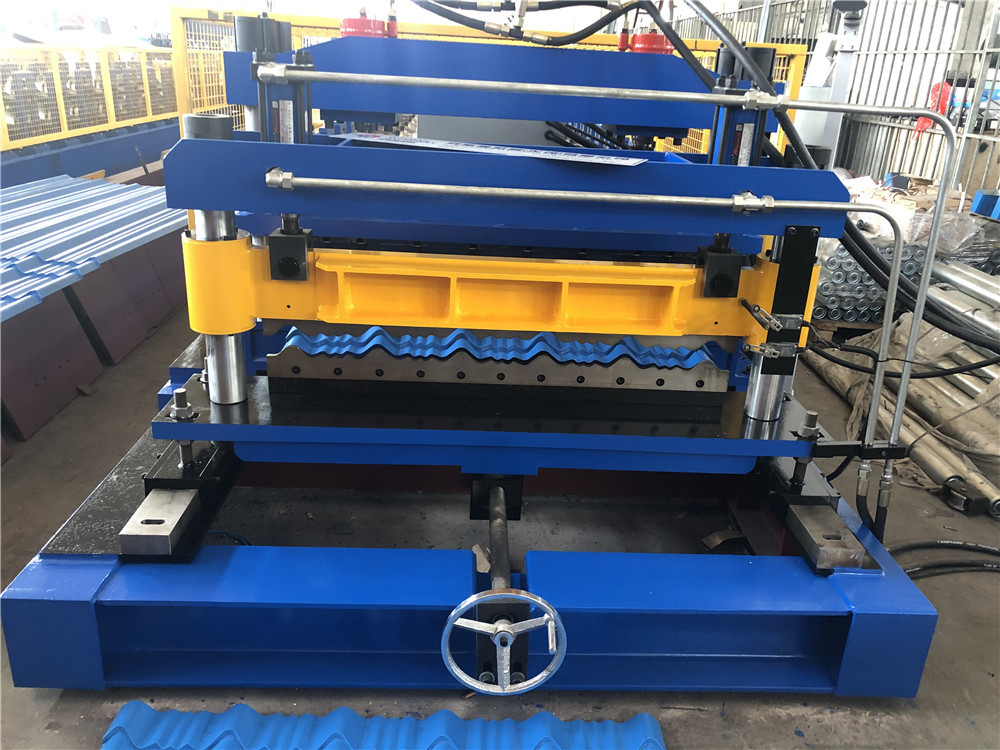

    Cut off method
    Hydraulic shear
    Forming scissors material
    Cr12
    Shear blade heat treatment
    HRC58 ° -60 °
    Rolling thickness
    0.3-0.8MM
    Material development width
    820mm
    Length sizing accuracy
    ± 2mm
    Computer control
    PLC
    drive
    Servo motor drive




    Glazed Tile Main Components

    S.N

    Equipment name

    Quantity
    1.

    5T passive un-coiler(optional)

    1 set
    2.

    Main roll forming machine 16 stations drived by chain

    1 set
    3.

    Hydraulic cutting

    1 set
    4.

    Control system (including control box)

    1 set
    5.

    Out tables

    2 sets












    Working Flow of Glazed Tile

    Decoiler----Feeding---Roll forming---Cutting---Run out tables


    Profiles of Glazed Tile



    Our Service

    Guarantee period: 12 months free service/ pay service all the machine life
    Installation and training:
    If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
    Without visiting,we will send you user manual and CD to teach you to install and operate.
    If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.


    Application

    Chain Drive 0.3mm 8m/Min Roof Panel Roll Forming Machine
