Color Steel 8M/Min Kr18 Standing Seam Metal Roof Panel Machine

Ask Lasest Price
Brand Name :	Sussman
Model Number :	RF-ST
Certification :	CE, SGS, ISO
Price :	negotiable
Supply Ability :	10 sets/month
Delivery Time :	60 days after deposit

Add to Cart

Product Details
Company Profile

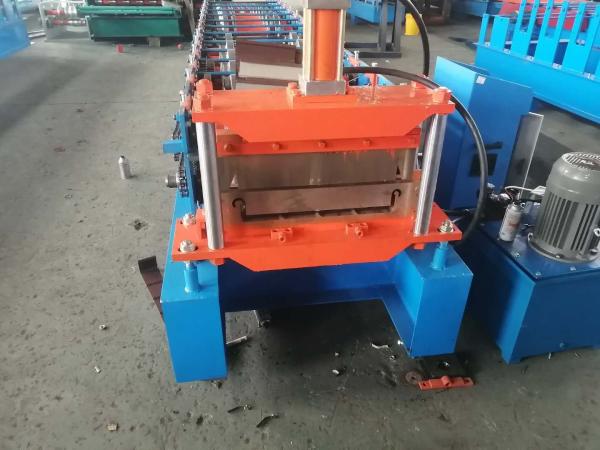

Color Steel 8M/Min Kr18 Standing Seam Metal Roof Panel Machine

0.7-1.2mm Color Steel Roof Panel Standing Seam Roll Forming Machine 8-12m/min

1. Technical Parameter

No.	standing seam profiling machine
1	Suitable to process	Color alu-zinc steel coil/Aluminium Coil
2	Roller	16 Rows
3	Dimensions	7.01.31.55m
4	Motor Power	7.5Kw
5	Pump Station Motor	5.5Kw.
6	Thickness of the plate	0.6-1.2mm
7	Productivity	10-15m/min
8	Material of the cutting blade	Cr12,Quenched treatment 58℃-60℃
9	Diameter of the roller	Φ75mm
10	Weight	About 6000kgs
11	Main structure of the machine	400H beams
12	Processing precision	Within 1.0mm
13	Side panel of machine	20mm
14	Chain Wheel and Cycle Chain	1 Inch
15	Voltage	380V 50Hz 3phases or as customer's need
16	Control system	PLC control (Delta)
17	Frequency system	Delta
18	Drive mode	Motor driver
19	Touch screen	Delta
20	Rolling materials	45# forging steel with chromium plate
21	Length Tolerance	±2mm

2. Machine List

5 tons passive de-coiler	1 set
Guiding Platform	1 set
Main roll forming machine	1 set
Cutting machine	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Passive Out table	2 units
Safety cover	1 unit

3. Profile Drawing

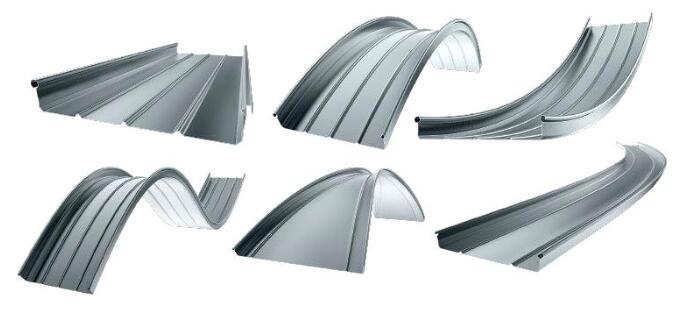

4. Application

This machine is used to form the pre-painted sheet/GI material to be the standing seam for various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.

5. Packaging & Shipping

1. Before loading to the container, we will check the machine first

2. To make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery

3. We will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.

At last, we will take photos for customer when loading to container.
