0.3-0.5 Mm Galvanized Steel 400-600 Mm Discontinuous Garage Door Pu Sandwich Panel Production Line

The production line is used to producing the sandwich panel that both the top and lower layer are color steel plate (or galvanized sheet,aluminum sheet and the core material is PU foam .

Mainly composed with metal roll forming machine, PU foaming system ,finished sandwich panel table and controlling system of fill line .


Technical Parameter
1. 1 Uncoiler
a) raw material: color steel sheet, aluminum sheet
b) motor power: 3Kw
c) hydraulic power: 2.2Kw
d) innder diameter of coil: 500mm- 600mm
d) outer diameter of coil: 1200mm
e) coil weight: 10T
f) sheet thickness: 0.4-0.8mm
g) sheet width: 1250mm
f) uncoil speed: 1.5-12m/min
g) hydraulic pressure: 6.3Mpa


1.2 Roll Forming Machine

a) sheet thickness: 0.4-0.8mm
b) roll forming speed: 1.5-12m/min
c) roller material: 40Cr, surface chrome coated, thickness 0.05mm
d) The way of width adjust: straight track, silk pole, reducer motor adjustable
e) width adjustable range: 600-1250mm
f) Motow power: up panel 4Kw, down panel 7.5Kw
g) structrue: arm type adjustable, support roller in the middle
h) shaft diameter: 50mm



Main Components

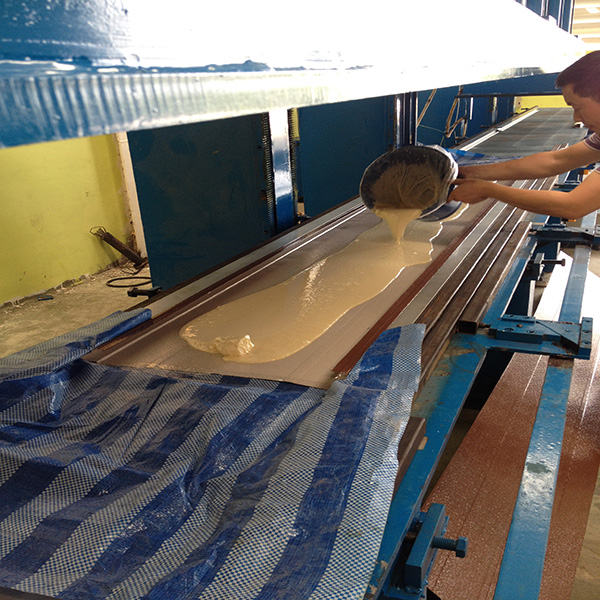

Machine Photo

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
