50 Mm Panel Thickness Pu Density 35-50 Kg/ M3 Continuous Finger Protection Garage Door Production Line

This machine line consists of 5T Decoiler, Embossing machine, roll forming machine 1 set,High pressure injection machine Garage door foaming composite machine 1 set, after cutting device 1 set, PLC control system , Hydraulic System and Air Pressure system, Auto stacker 1 set

(1). Production type: Automatic continuous making machine

(2). Material spec: thickness 0.3-0.5mm, ≤G250 color steel sheet, aluminum.

(3). Production width: (400~600) mm can be adjustable

(4). Material of compound panel: double layer are metal sheet

(5).Main motor power: ≥20.5kw

(6).Main power: 100kw, pressure: 380V, 50HZ

(7). Structure of forming machine: up layer forming machine and down layer forming machine will run with composite machine together to become sandwich.

(8). Structure of composite machine: Adopt left and right two sides rubber conveyer belt orientation.

(9). Foaming system: Adopt Auto Continuum froth, the foaming is limited.

(10). Foaming Thickness: 40mm

(11). Working speed: 3-5m/min (According to thickness 40mm)

(12). Control System: PLC (DELTA, import from Taiwan)

(13). Length precision: length permissible errors ±1.5 mm

(14). Machine Weight: about 30000kg

Garage door PU sandwich panel production line:

Decoiler---Embossing----roll forming ---cutting after forming---out products

Main Components

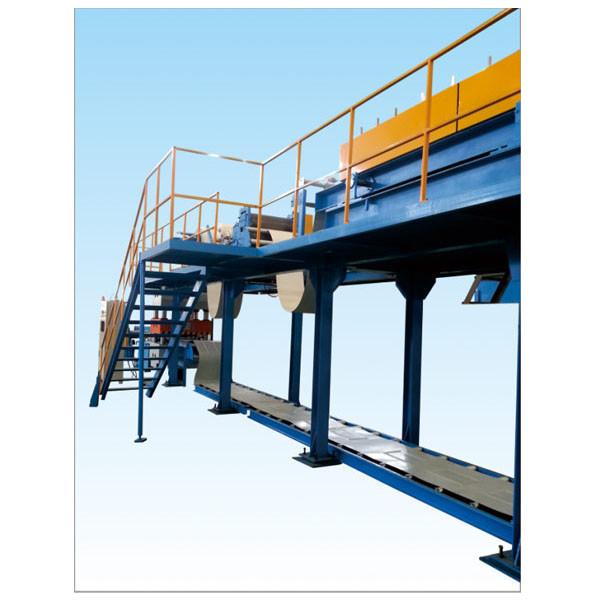

Machine Photo

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
