7.5kw Power Cnc System Vertex Bd Software Prefabricated House Steel Frame Cad Machine Light Gauge Steel Framing Machine

Main Specifications

1. The wall, floor and roof structure is produced automatically, saving design time.
2. Automatic 3D molding, insure 100% accuracy.
3. With analysis project function, the software can calculate bearing capacity.
4. Create frame work 3D map and 3D decoration view.
5. The whole building frame can be resolve to independent unit drawing.
6. Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material.
7. Create the processed data including the marked work piece, docking with the equipment.
8. Software maintenance and training fee.
9. Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.

Equipment description

1: Configuration of the machine

Uncoiler 1 set

Roll forming roller: 12 groups

PLC control system 1 set

Hydraulic cutting system: 1 set

Collection table

2: Working Process Flow of the omega profile forming machine

Uncoiling-Coil feeding-Guiding-Roll Forming-Punching (if needed) - Cutting-Collection table

3: Technical Parameters:

A: Power supply:

380V, 3 phases, 50 Hz (can be adjusted according to actual power supply conditions in different countries)

Main motor power: 7.5KW

Pump power: 5.5kw

B:Uncoiler:

Inner diameter: 460-520mm

Outer diameter: 1300mm
loading weight: 2T

C:Forming part:

Feeding thickness: 0.6-1.2mm

Feeding width: 50-500mm

Forming speed: 8-12m/min

Cutting Deviation: 10m±2mm

No. of Roller station: 12 groups

Roller material: GCr15

Material of shaft: Cr40

Diameter of shaft: 42mm

D:Hydraulic System:

Hydraulic pressure: 10-12 Mpa

Cutter material: SKD11

E:Control system:

Full-automatic NC-PLC control system

Control channel: Colored touch screen

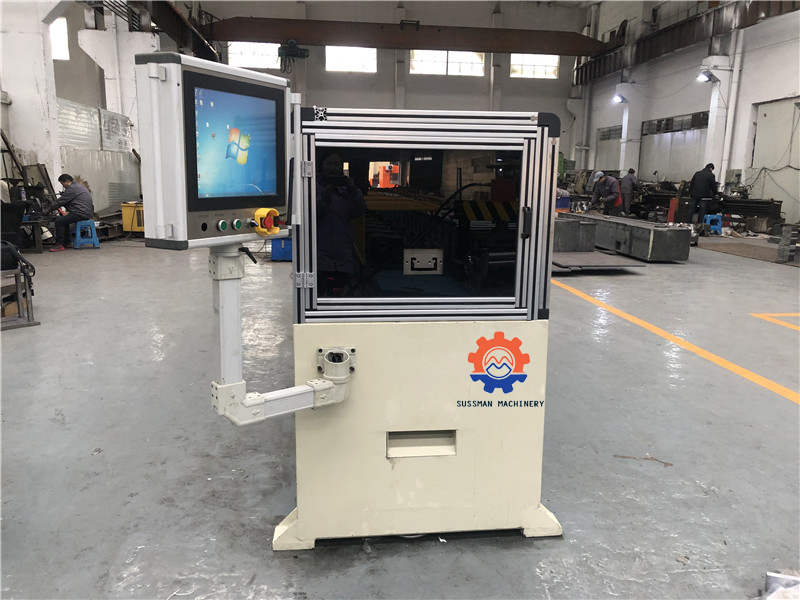

Our machine photo
