7.5KW 12-15m/Min Stud Track Light Steel Roll Forming Machine
Main Specifications
| Item | Description |
| Automatic Decoiler |
| Loading Weight | 2000kgs |
| Coil Inner Diameter | φ430~520mm |
| Coil Outer Diameter | φ1300mm |
| Strip width | 100~450mm |
| Strip thickness | 0.7~1.2mm |
| Profile description |
| C Profile size | 89*41*13mm |
| Roll Forming Machine |
| Dimension | 5000*1000*1800mm |
| Weight | 3500kgs |
| Roller grade | Material: SKD-11 |
| Roller Processing Technique | CNC maching,heat treatment HRC58-60 |
| Shaft grade | 40Cr Steel |
| Shaft processing technique | CNC maching, quenching and tempering HRC28-32 |
| Punching Device | dimpling with screw holes,service hole,web notch,lip notch, truss
end chamfer, swage, crimp |
| Control System |
| Control Device | One Lenovo laptop, a control box inside of based frames of the
machine |
| Design Software | Vertex BD from AU |
| Leaser Printing Device | USA Matthews Leaser Printing Device for Painting spray logo and
installation indicating number |
| Remote-control Device | Wireless remote-controller controls machine to go forward or back
or stop |
| Main brand | PLC(self-developed),Relay(Schneider),Proximity
switch(Schneider),Encode(Omron) |
| Motor and hydraulic System |
| Servo motor | 5.5kw with precious gear reducer |
| Hydraulic station | 7.5kw , 200L tank |
| Run-out Table |
| Length | 3M with side pnematic support |
| General introduction |
| 1. Windows system touch panel. Quick importing NC instructions Via
network or USB interface. |
| 2.Visual work process monitoring |
| 3.Vertex BD Software |
| 4.German Bosch Rexroth hydraulic system. Quick loading and
unloading mould design |
| 5.High quality die steel. Vacuum hardening treatment. CNC Machine
Center Finishing |
| 6.Built-in maintenance free ink jet printer |
| 7.Perfect forming. Accurate sizing |
Equipment description
1: Configuration of the machine
Uncoiler 1 set
Roll forming roller: 12 groups
PLC control system 1 set
Hydraulic cutting system: 1 set
Collection table
2: Working Process Flow of the omega profile forming machine
Uncoiling-Coil feeding-Guiding-Roll Forming-Punching (if needed) -
Cutting-Collection table
3: Technical Parameters:
A: Power supply:
380V, 3 phases, 50 Hz (can be adjusted according to actual power
supply conditions in different countries)
Main motor power: 7.5KW
Pump power: 5.5kw
B:Uncoiler:
Inner diameter: 460-520mm
Outer diameter: 1300mm
loading weight: 2T
C:Forming part:
Feeding thickness: 0.6-1.2mm
Feeding width: 50-500mm
Forming speed: 8-12m/min
Cutting Deviation: 10m±2mm
No. of Roller station: 12 groups
Roller material: GCr15
Material of shaft: Cr40
Diameter of shaft: 42mm
D:Hydraulic System:
Hydraulic pressure: 10-12 Mpa
Cutter material: SKD11
E:Control system:
Full-automatic NC-PLC control system
Control channel: Colored touch screen

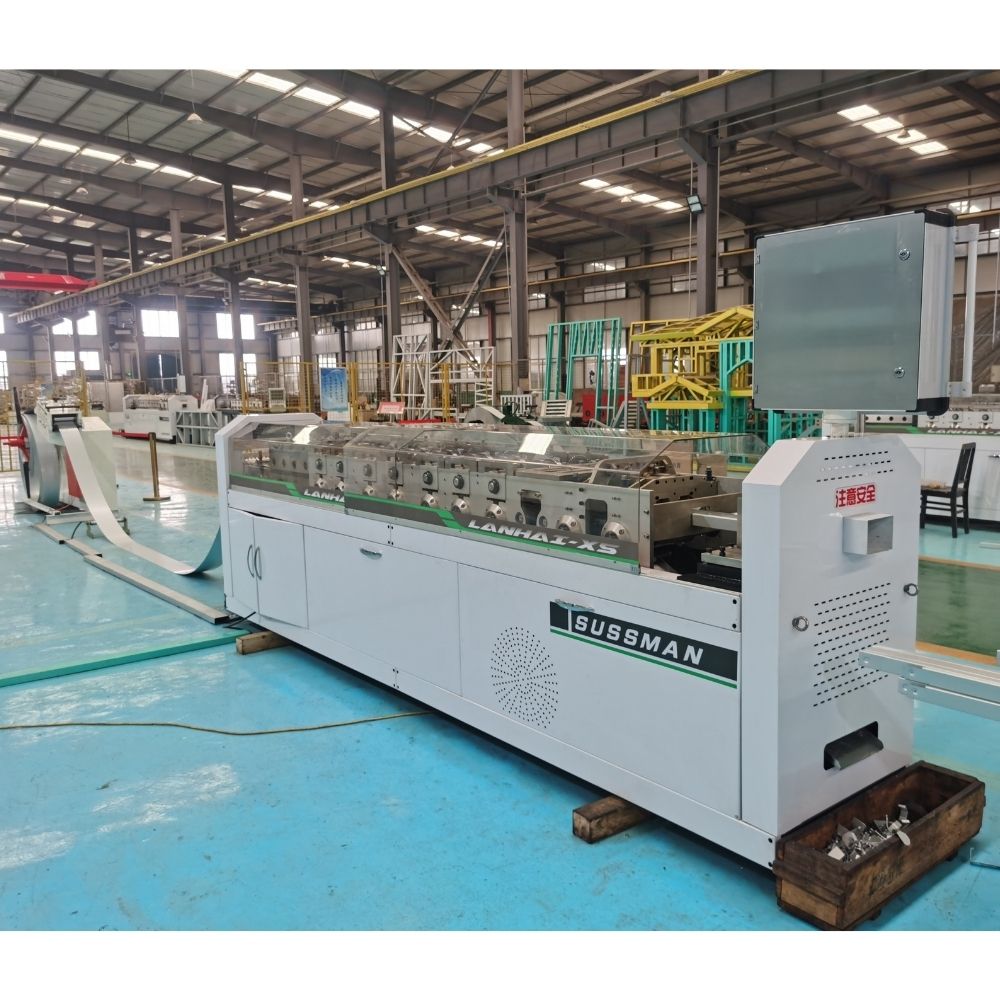

Our machine photo
