Brand Name : | Sussman |
Model Number : | SM-CP |
Certification : | SGS.CE.ISO |
Price : | negotiable |
Payment Terms : | L/C, T/T, Western Union, MoneyGram, D/P |
Supply Ability : | 10 sets per month |
Delivery Time : | 75 days |
3mm-4mm Gearbox Drive 18 Stations C Purlin Cold Roll Forming Machine
C Purlin Technical Parameter
Items | Specifications | |
Material of coil | Material Thickness | 1.0-2.5 mm Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils |
De-coiler | Weight | 3 tons passive |
Forming system | Rolling Speed | 10-12m/min |
Roller Stations | About 18 stations forming | |
Roller Material | Gcr15 Steel with quenching | |
Shaft Material | 45# Steel Diameter 75mm shaft | |
Maim Motor Power | 11 kw | |
Hydraulic cutting Power | 5.5 kw | |
Cutting system | Material Of Cutting | CR12 with quench treatment |
Hardness | HRC58-62 | |
Tolerance | +-1.5mm | |
Cutting blade | 1 set of cutting blade | |
Electrical control system | Electric Source | 380V, 50HZ, 3phase |
Control System | PLC with touch screen Japanese Panasonic and Yaskawa Brand | |
Way Of Drive | 1 inch single chain | |
Size of machine | Length 7300mm* Width 800mm* Height 1000mm |
Main Components
S.N | Equipment name | Quantity |
1 | 3T manual uncoiler | 1 set |
2 | Levelling device | 1 unit |
3 | Punching station (including punching mould) | 1 unit |
4 | Main roll forming machine | 1 set |
5 | Main drive | 1 unit |
6 | Cutting unit | 1 set |
7 | Hydraulic station | 1 set |
8 | Control system ( including control cabinet) | 1 set |
9 | Out put rack | 1 set |
10 | Cutting mould | 3 sets |
Application

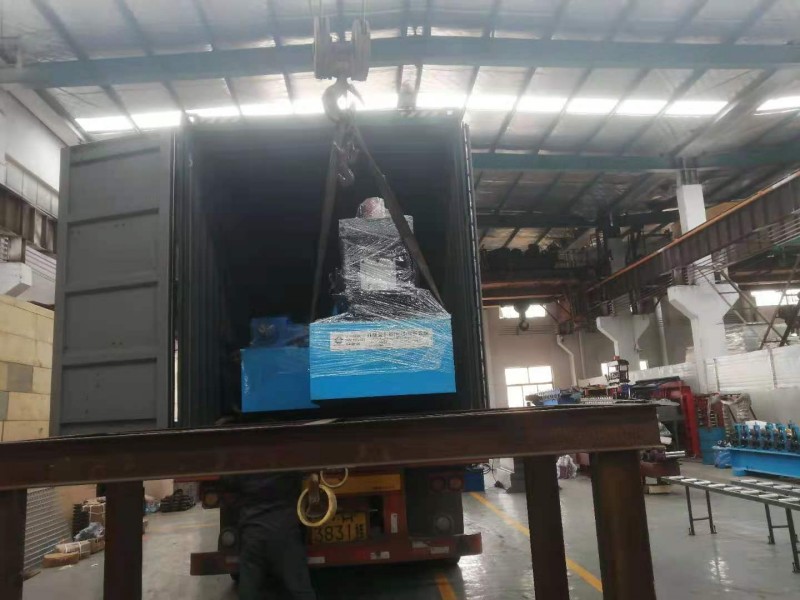

Loading pictures
Main body of machine is naked and covered by plastic film(to protect of dust and corrosion).
Delivery time: 75 days after deposit
![]() |
