0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine With Perforated Holes

Ask Lasest Price
Brand Name :	Sussman
Model Number :	RF-PU
Certification :	CE, SGS, ISO
Price :	negotiable
Payment Terms :	TT
Supply Ability :	10 sets/month
Delivery Time :	50 days after deposit

Add to Cart

Product Details
Company Profile

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine With Perforated Holes

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine with Perforated Holes

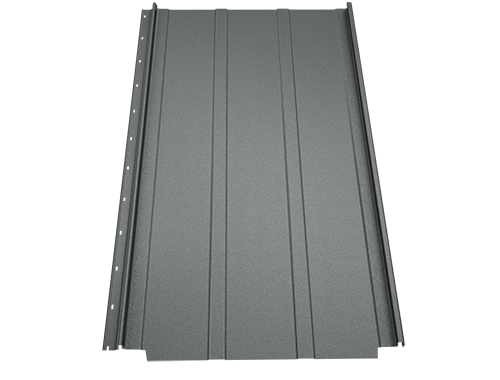

Standing seam roof panels have been used on roofs of traditional and contemporary homes for more than a century and these standing seam metal roofing panels are commonly used on roofs of commercial businesses because of the roofing's outstanding durability.
These standing seam roof panels have area clean and graceful lines that have been an enduring favorite on a wide range of architecture.

Technical Parameter:

Item NO	Description	Offered specification
1.0	Roll forming machine
1.1	Rolling speed	10-12 meters/min(not include cutting time)
1.2	Rolling thickness	0.3mm-0.8mm
1.3	Raw material	Color painted coils, Aluminium, Zinc, Galvanized
1.4	Main Motor	7.5KW
1.5	Dimension	About 1100×1600×1200(mm)
1.7	Roller stations	About 16 stations
1.8	Roller material	45#forge steel, coated with chrome
1.9	Shaft diameter	Φ76mm
1.10	Transmission	By chain 1.2 inch
1.11	Material of chain	45# forged steel with frequency quenching, 12A
1.12	Material of cutting	Cr12Mov with quench HRC58-62°
1.13	Tolerance	10m+-1.5mm
1.14	Hydraulic station	4kw

Machine List:

5 ton passive de-coiler	1 set
Hydraulic Punching	1 set
Main roll forming machine	1 set
Roller Punching	1 set
Hydraulic Cutting	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
4 meters passive table	1 unit
Spare part	1 package

Profile Drawing:

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine With Perforated Holes

Application:

0.3-0.8mm Thickness Snap Lock Roof Sheet Roll Forming Machine With Perforated Holes
