    Steel Frame Sizes 89mm 152mm 305mm C Channel LSF Light Gauge Steel Framing Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF-ST
    Certification : CE, SGS, ISO
    Price : negotiable
    Supply Ability : 5 sets/month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    Steel Frame Sizes 89mm 152mm 305mm C Channel LSF Light Gauge Steel Framing Roll Forming Machine

    Steel Frame Sizes 89mm 152mm 305mm C Channel LSF Light Gauge Steel Framing Roll Forming Machine


    1.Main Specifications


    Size
    C89 C152 C305
    Thickness
    0.8-2.0mm (G300-G550Galvanzied coils and Aluzinc )
    Standard producing speed
    300-700m/h
    Max producing speed
    1500m/h
    Main motor
    11kw
    Power supplier
    380V 50Hz 3phases or according to your request
    Hydraulic station
    7.5kw
    Hydraulic tank capacity
    200L
    Hydraulic cooling
    Fan cooling
    Hydraulic pressure
    computer set
    Frame and punching dies
    Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting
    Tolerance
    0.5mm
    Inkjet printer
    EC-JET
    Machine size
    6500*1000*1500mm
    Weight
    5000kg
    Color
    according to your request
    De-colier
    bearing 3 tonne, automatical decoiler

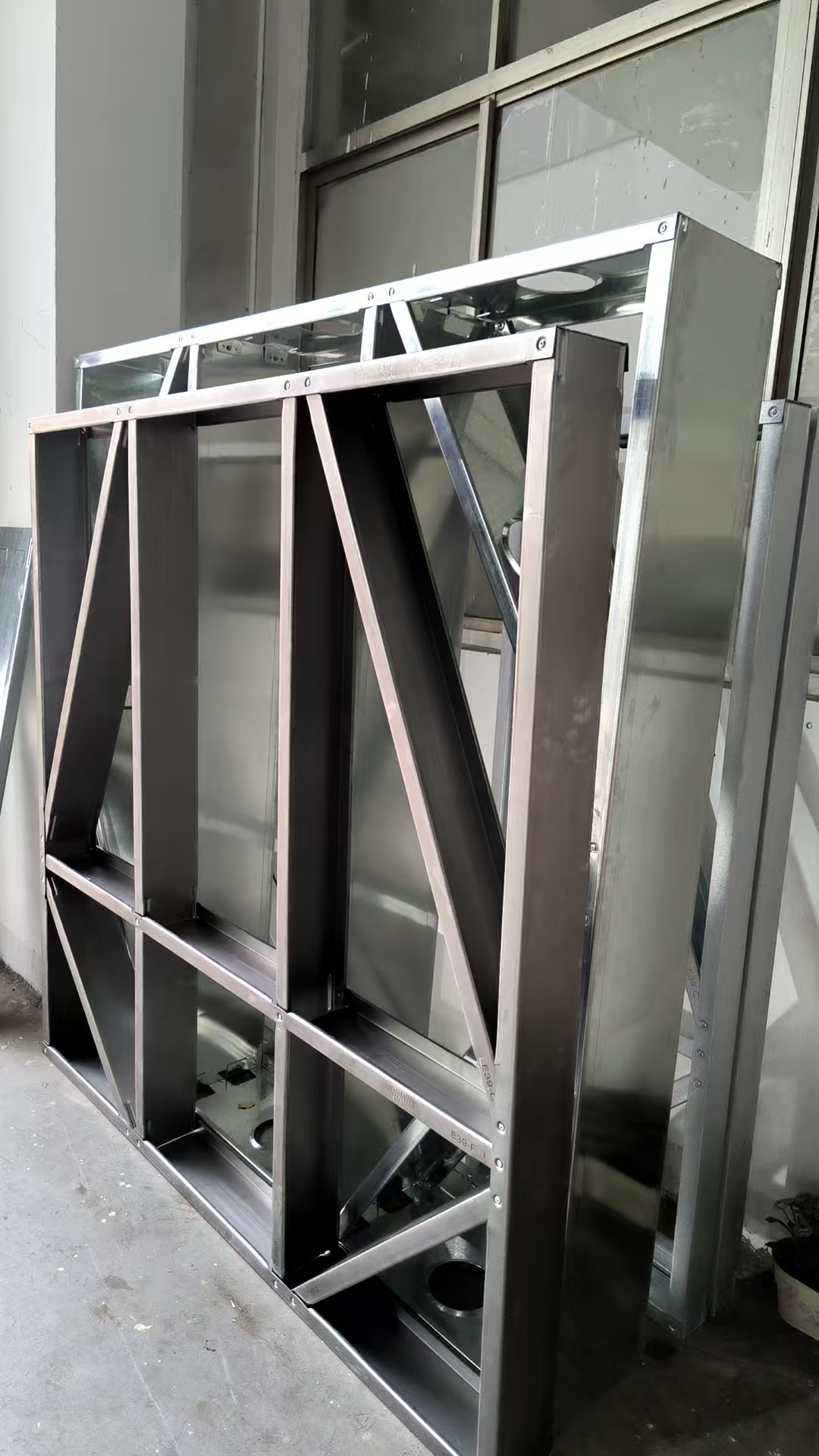

    2.Profile photo


    Steel framing machine (often called a light gauge steel roll forming machine) that can produce multiple steel frame sizes ranging from 89mm to 305mm(e.g. 89, 100, 150, 200, 250, 305 mm)



    2.Machine Components & Specifications:

    No.
    Items
    Quantity
    1
    3 tons manuall Uncoiler
    1
    2
    Roll Former Machine
    1
    3
    Hydraulic Punching device
    6
    4
    Hydraulic Station
    1
    5
    Vertex Software
    1
    6
    Controlling System
    1
    7
    Printer
    1
    8
    Receiving Table
    1
    9
    Tool box for free

    3.Features of Multi-Size Framing Machine

    FeatureDescription
    Automatic Size AdjustmentSome high-end machines offer fully automatic profile changeovers with no manual tooling required. Others are semi-automatic.
    Integrated PunchingPunches for service holes, web notches, lip cuts, and screw holes based on framing design.
    CNC/PLC ControlOperated via touchscreen or software interface; often includes integration with CAD/BIM software like Vertex, FRAMECAD, or Howick.
    Material CompatibilityTypically uses galvanized steel coils (G90/G60), sometimes black steel or aluminum.
    Length CuttingAutomated cut-to-length shearing or flying cut system based on design input.
