Mexico Roladora Portable KR18 KR24 Beam Standing SSR Roof Sheet
Roll Forming Machine
KR18 KR24 Movable Standing Seam Roll Forming Machine
KR18 KR24 are the popular profile drawing in Mexico. The KR-24 jointed sheet is rolled with portable equipment, which
facilitates its transfer and installation. Its fixing is hidden by
means of clips and its longitudinal overlap can be clipped, this
guarantees a low maintenance cost and great impermeability.
The KR-24 sheet is of SSR type (Standing Seam Roof) ribbed and
jointed on site. The KR-24 Steel Sheet (SSR-24) has a hidden fixing
system based on clips, it reduces the risk of possible leaks since
it is not required to drill the sheet for its installation. The
KR-24 has no limitations in its length since it is manufactured in
a single piece from gutter to ridge. It also allows the
installation of insulating materials. Hooked Roofs can be installed
on roofs with low slopes up to 2%.
This machine is portable, can be with trailor or not, the customer
can put the machine on the truck and take the machine to the construction.
1. Specification
Size: approximately 4.5*1.0*1.2M
Weight: about 3.0 T
Axle and wheels: two axles, four wheels
Towing: adjustable draw bar height from 80mm-160mm with 80mm round
hitch.
Working speed: Forming:10-13 m/min
Material of rollers: Good 45# steel, rigid chrome coated
Material of roller shafts: 45# steel, quenched HRC 58-62
Material of cutting blade: Cr12 steel
Forming station: 11 steps
Power plant:gasoline engine 24HP
Battery:12 Volt DC*2
Drive System: All hydraulic pump with engine
Drive/Forming Rollers: Chain drive
Host big frame structure H Frame
Cutting type: Hydraulic cutting
Manual Decolier:Carrying capacity 5 tons of steel coil
Working procedures: feeding-forming-cutting
2, Spare Part
De-coiler | 1 set |
Manual Super plier | 1 set |
Driving chains | 1 set |
Chain half section | 5 |
Chain whole section | 3 |
Polish wax | 1 |

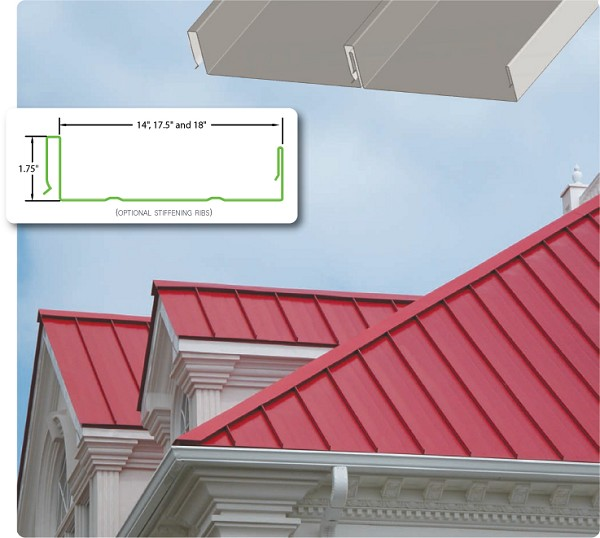

Profile Drawing:

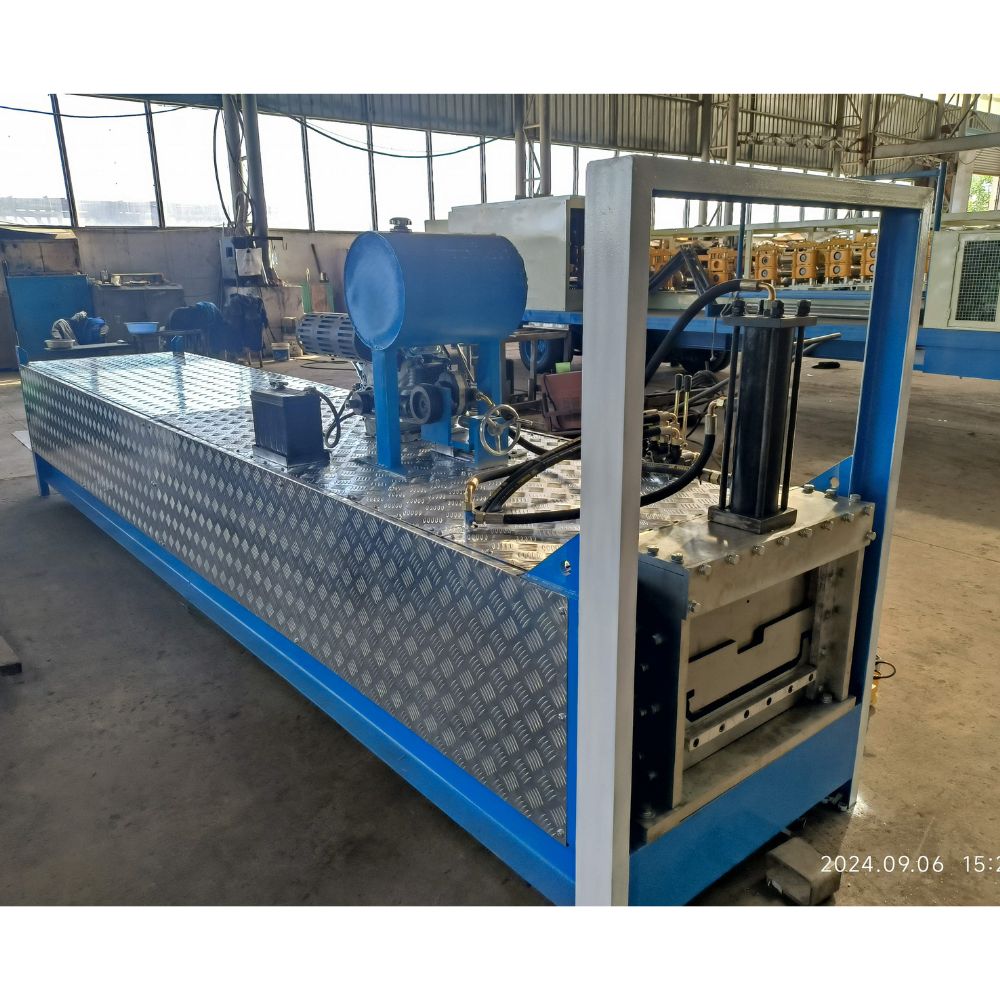

Machine Shows:
Portable KR18 Roll Forming Machine with Wheels and Trailers

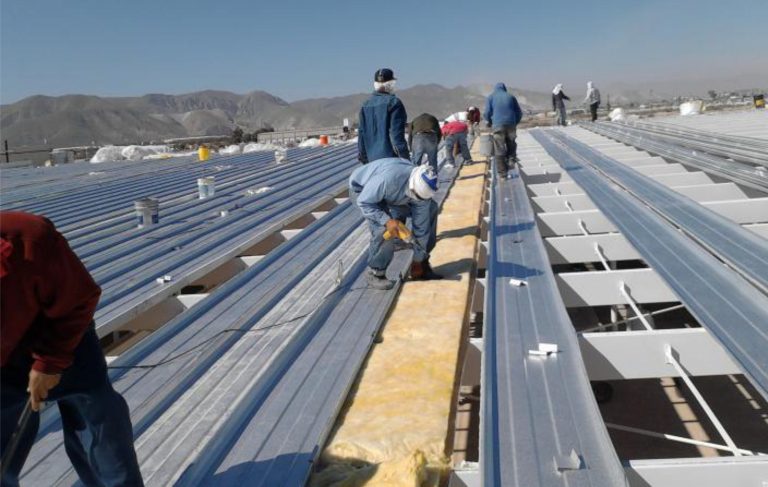

Application:
Portable metal roof roll forming machine export standard packages
details
1.Nude,with waterproof cloth and stow-wood.Imported computer
control system packed with waterproof cloth and card board.
2.This producing line is maintained free of charge for 24
months.When the machine is used in China, we will install and debug
the machine for free; if it is used at abroad,we will send the
professional technician to debug.Buyers should take all the fees
for technicians travelling abroad.
3.All the parts in the roll forming machine is free to maintain all
the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express
cost,if more than 24 month,we also free to maintain the broken
parts ,but for send the new parts,the buyer need bear the express
cost.
