    2mm-4mm Sheet Thickness W Beam 2 Waves Crash Barrier Guardrail Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-GR
    Certification : CE
    Price : negotiable
    Payment Terms : T/T L/C, D/P, Western Union, MoneyGram
    Supply Ability : 10 sets per months
    Delivery Time : 75days after deposit
    • Product Details
    • Company Profile

    2mm-4mm Sheet Thickness W Beam 2 Waves Crash Barrier Guardrail Roll Forming Machine

    2mm-4mm Sheet Thickness W Beam 2 Waves Crash Barrier Guardrail Roll Forming Machine


    Guardrail Roll Technical Parameter

    1Model No.Two waves highway roll forming machine
    2Coil thickness2-4mm
    3Coli materialSteel
    4The bearing capacity of manual decoiler5 tons
    5Shaft material45#steel
    6Shaft diameter90mm
    7numbers of forming steps18 stations
    8transmissionDifferential gearbox transmission
    9Forming speed10 m/min
    10main motor power18.5*2kw
    11voltage380V50HZ Three-phase or you need
    12dimension20.5*1.2*1.5m
    13cuttingHydraulic cutting
    14blade materialCr12 steel with quenched treated 60-62°c
    15control systemPLC(Delta)
    16Tolerance±1.5mm




    Guardrail Roll Main Components

    Decoiling—Feeding&leveling----Punching —— roll forming------hydraulic cut to length--outtable


    S.N

    Equipment name

    Quantity
    1

    5 ton manual decoiler


    1 set
    2

    Feeding and leveling device

    1 set
    3

    Hydraulic punching device


    1 set
    4

    Main roll forming machine

    1 set
    5

    Hydraulic station

    1 set
    6

    Control system (including control box)

    1 set
    7

    Out table

    2 sets
    8

    Punching Device

    2 sets


















    Advantage for Guardrail Roll

    1. Reasonable Price
    2. High Quality
    3. 12 Months Warranty
    4. More Than 10 Years Experience
    5. Durable
    6. Reliable

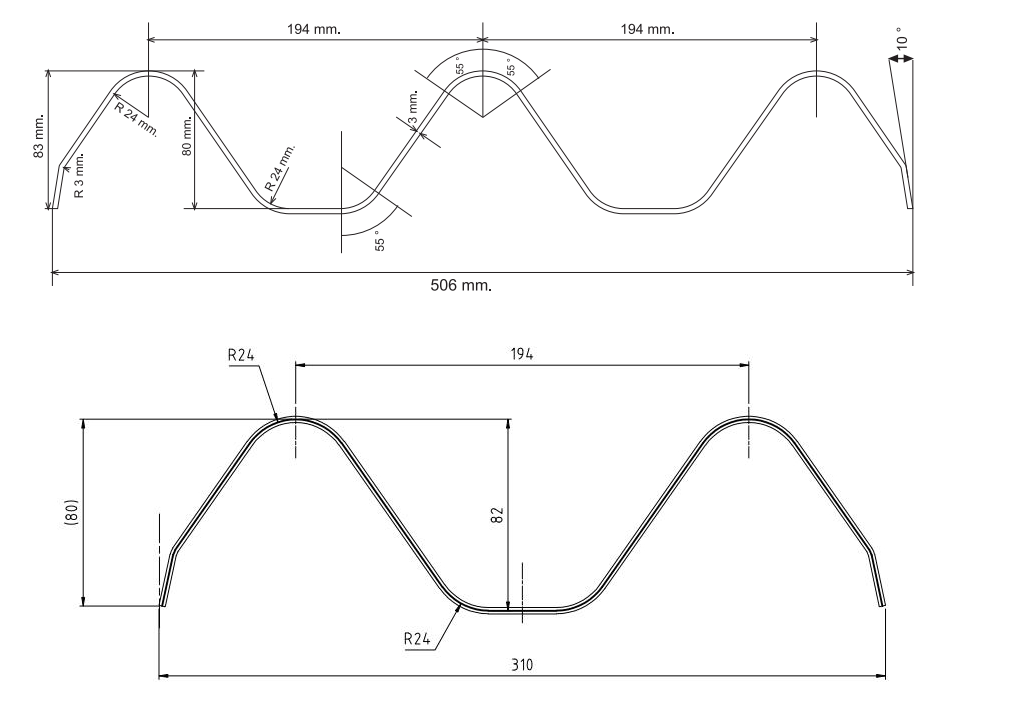

    Profile Drawing


    The guardrai profile can be customized as the client's request.



    Application:


    Highways and Roads: The primary application is in the construction and maintenance of highways and roads. Guardrails help to prevent vehicles from veering off the road, especially on curves, bridges, and elevated sections.

    Bridges and Overpasses: Guardrails are installed on bridges and overpasses to prevent vehicles from falling off the edge and to protect pedestrians and other infrastructure.

    Parking Lots: In parking lots, guardrails are used to delineate parking spaces, protect pedestrians, and prevent vehicles from damaging property or other vehicles.

    Railways: Guardrails can be used alongside railway tracks to keep vehicles and pedestrians at a safe distance from the tracks.

    Industrial Facilities: In industrial settings, guardrails are used to protect workers from falling into hazardous areas or machinery. They are also used to safeguard equipment and infrastructure.

    Commercial and Residential Properties: Guardrails are used around properties, including in commercial areas, residential buildings, and recreational facilities, to enhance safety.

    Sports Facilities: At sports venues, guardrails can be used to protect spectators and separate different areas of the facility.
