    0.3-0.8mm Thickness Flat Pan Patio Covers and Carports Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF-PU
    Certification : CE, SGS, ISO
    Price : negotiable
    Payment Terms : TT
    Supply Ability : 10 sets/month
    Delivery Time : 50 days after deposit
    • Product Details
    • Company Profile

    0.3-0.8mm Thickness Flat Pan Patio Covers and Carports Roll Forming Machine

    0.3-0.8mm Thickness Flat Pan Patio Covers and Carports Roll Forming Machine


    Flat Pan covers are chosen for their durability and load strength achieved by the flat of the pans. These are often used in the construction of long span patio covers, car ports, commercial awnings and equipment shelter systems. Simple locking pan design and complete kits make installation easy for anyone to complete.

    Technical Data:
    1.Passive uncoiler 5 ton
    2.Main motor power:5.5KW
    3.Motor power of hydraulic station:5.5KW
    4.Forming station: about 22 stands
    5.Main machine size:9.5 m×1.2m×1.25m
    6.Forming speed: 10m/min
    7.Diameter of roller shaft:¢76mm
    8.Raw material width:610mm
    9.Roller surface coating with chrome:single face≥0.05mm
    10.Forming thickness:0.4-0.8mm
    11.profile according to GB/T12755-91 standards
    12.material of cutting blade: Cr12
    13.frequency: Yaskawa
    14. PLC Siemens
    Machine List:
    W-Pan covers are chosen for their durability and load strength achieved by the 'W' profile of the pans. These are often used in the construction of long span patio covers, car ports, commercial awnings and equipment shelter systems. Simple locking pan design and complete kits make installation easy for anyone to complete.
    Technical Data:
    1.Passive uncoiler 5 ton
    2.Main motor power:5.5KW
    3.Motor power of hydraulic station:5.5KW
    4.Forming station: about 22 stands
    5.Main machine size:9.5 m×1.2m×1.25m
    6.Forming speed: 10m/min
    7.Diameter of roller shaft:¢76mm
    8.Raw material width:610mm
    9.Roller surface coating with chrome:single face≥0.05mm
    10.Forming thickness:0.4-0.8mm
    11.profile according to GB/T12755-91 standards
    12.material of cutting blade: Cr12
    13.frequency: Yaskawa
    14. PLC Siemens
    Machine List:
    3 ton passive de-coiler1 set
    Main roll forming machine1 set
    Hydraulic Cutting1 set
    PLC Control box1 unit
    Hydraulic station1 unit
    4 meters passive output table1 unit
    Spare part1 package

    Sample Pictures:

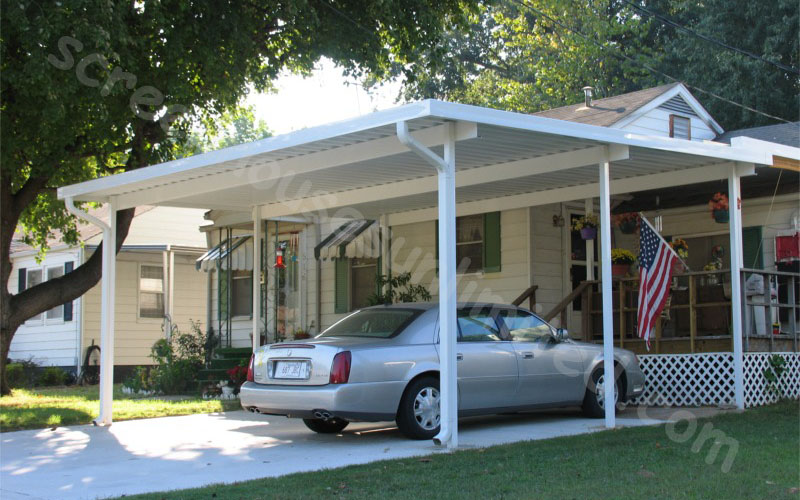

    Application:

    Roll formed W-pan patio covers provide economical, solid shade that protects you and your home from inclement weather and harmful UV rays while also providing shade for relaxing.


    Loading pictures:
