    Gl Aluminum 0 .024 To 0.032 Inches Thickness Metal Flat Pan Patio Covers Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF-ST
    Certification : CE, SGS, ISO
    Price : negotiable
    Supply Ability : 10 sets/month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    Gl Aluminum 0 .024 To 0.032 Inches Thickness Metal Flat Pan Patio Covers Roll Forming Machine

    Gl Aluminum 0 .024 To 0.032 Inches Thickness Metal Flat Pan Patio Covers Roll Forming Machine


    1. Technical Parameter


    Product Nameflat pan roll forming machine
    MaterialApplicable materialGI(Galvanized Steel Sheet)/PPGI/PPGL/Aluminum
    Material thicknessAluminum: 0.7-1.2mm; Steel:0.5-0.8mm
    With yield strength235-345-550Mpa Yield Strength
    MachineBase frameH450 type steel
    Roller material45# high grade steel with hard chrome coating
    HardnessHeat treatment to HRC50-55 degree
    Roller station20
    Shaft diameter75mm
    Machine size9000*1000*1500mm
    Machine weight6 tons
    Machine colorstandard
    Working speed8-15m/min
    CutterHardnessHeat treatment to HRC58-62 degree
    Cutting tolerance±1mm
    MaterialCr12MoV
    OperateBy PLC
    PowerDriving wayChain transmission,
    Main motor7.5KW
    Pump motor for cutter4kw
    Voltage220/380/415/480V- 60/50Hz/3Ph --customized
    PLC Control SystemInverterSchneider Electric/Siemens/DELTA (Taiwan brand)
    Touch ScreenSchneider Electric/Siemens/WEINVIEW(Taiwan brand)
    EncoderOMRON (Japan brand) or KOYO (Japan brand)
    Cut-to-length tolerance±1mm

    2. Machine List

    3000kgs manual de-coiler

    1 set

    Feeding with guide

    1 set

    Main roll forming machine

    1 set

    Hydrualic Cutting machine

    1 set

    PLC Control box

    1 unit

    Hydraulic station

    1 unit

    Passive Out table

    2 units

    Safety cover

    1 unit


    3. Profile Drawing

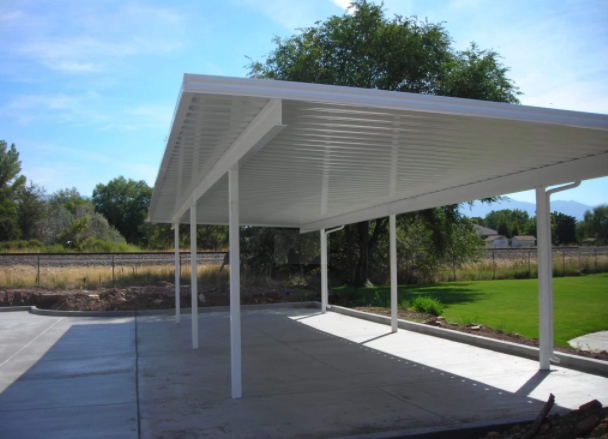

    A patio cover flat pan is a type of aluminum or steel roofing system designed to provide shade and protection over outdoor patio areas. The term "flat pan" refers to the design of the roofing panels, which are typically flat and have minimal ribbing or grooves, giving a clean and sleek appearance. Flat pan patio covers are popular for their ease of installation, durability, and aesthetic appeal.

    The most commonly used thickness for flat pan patio covers is generally .024 to .032 inches (about 0.6 to 0.8 mm) for aluminum panels. This thickness strikes a balance between strength and flexibility, making it durable enough to handle various weather conditions while remaining lightweight for easier installation.

    Key Features of Flat Pan Patio Covers:

    1. Flat Panel Design: The flat surface of these panels provides a smooth look that can complement various architectural styles.
    2. Durable Material: Typically made from aluminum or steel, flat pans are corrosion-resistant and can withstand exposure to the elements, including sun, rain, and snow.
    3. Modular Construction: The panels are usually interlocking, making installation straightforward and creating a seamless, leak-proof surface.
    4. Drainage Options: Some systems have built-in gutter systems that direct water away from the patio area, helping to prevent pooling or leaks.
    5. Customization: Available in various colors, finishes, and sizes, allowing customization to match home or landscape aesthetics.


    4. Application


    Applications of Flat Pan Patio Covers:

    1. Residential Patios: Protects patios and decks, extending the living space into the outdoors while providing a comfortable shaded area.
    2. Commercial Outdoor Areas: Used in restaurants, cafes, and other commercial spaces to create outdoor seating areas.
    3. Carports and Walkways: Flat pan covers are also used for carports or walkways to protect vehicles and pathways from the elements.

    Installation Considerations:

    • Support Posts and Beams: Patio covers usually require support posts and beams to ensure structural stability.
    • Gutter and Drainage: Proper drainage is essential to avoid water pooling, which could cause rusting in steel covers or unwanted water flow around the patio.
    • Permits: Some localities require permits for patio covers, so it's important to check local building codes before installation.


    5. Packaging & Shipping


    Before loading to the container, we will check the machine first

    Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery

    Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.

    At last, we will take photos for customer when loading to container.


    6. Machine products
