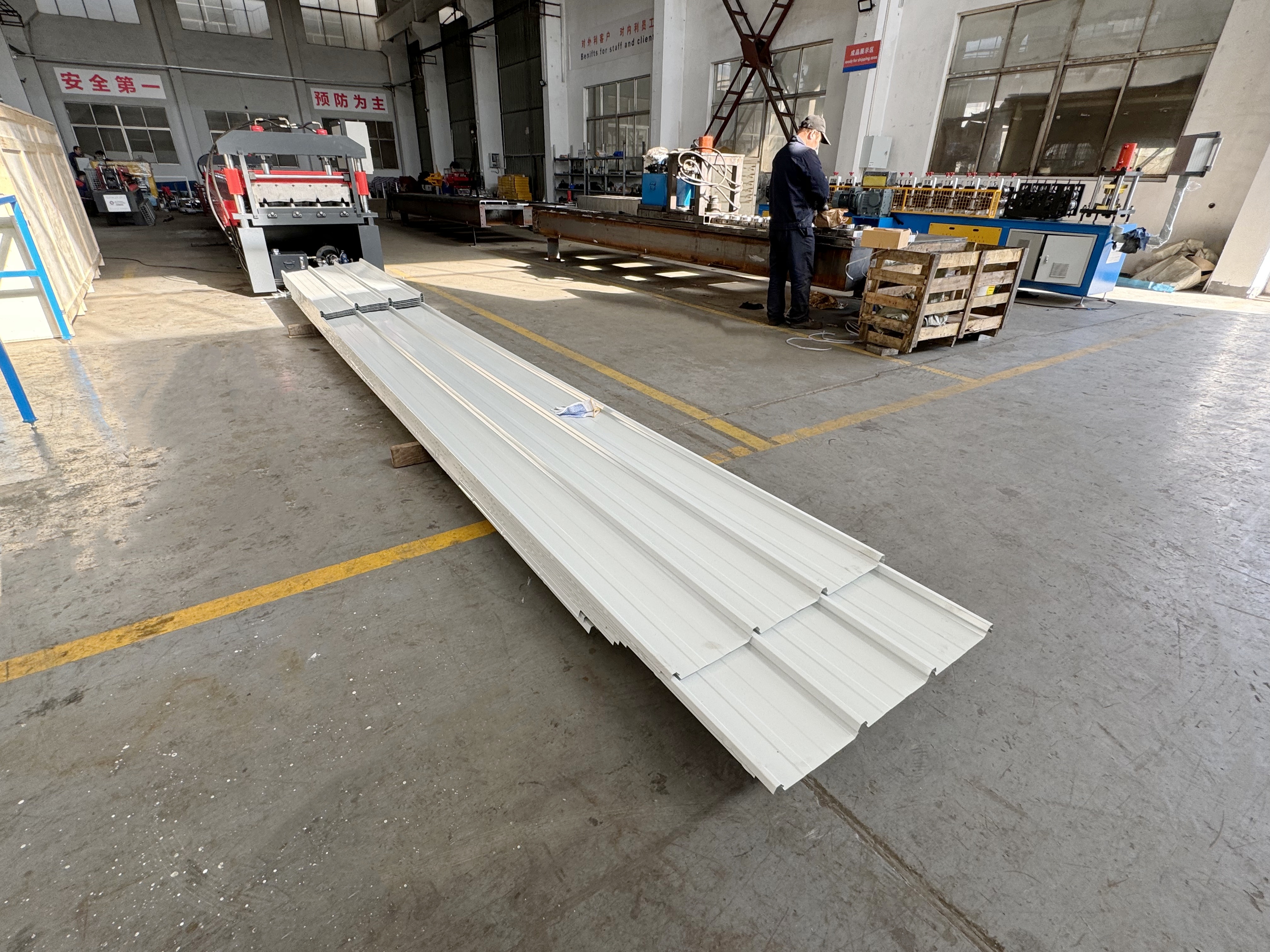

Malaysia Popular Clip Lock 700 730 410 Standing Seam Roll Forming Machine

Klip Lok roofing is a strong and durable long length roof (or wall) cladding. As the name suggests, Klip Lok is secured with concealed fasteners and fixed clips. This allows the sheets to be secured without being punctured. This cladding is ideal for low pitched and flat roofs as well as vertical and horizontal ribbed walling. As there are no exposed fasteners, your roof will have a smooth, clean look. Klip Lok roofs are ideal for anyone looking for an easy to install material that is cost-effective.

Technical Data:

Rolling Speed : 10-12m/min(cutting time is not include)

Steel sheet Thickness: 0.3-0.7mm color painted sheets

Coil width 914mm, effective width 720mm

Control System: PLC Delta

Roller Stations: about 20 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ￠70mm,material is 45# forge steel, Chrome with quenching

Main Motor Power: 7.5kw

Hydraulic Pressure: 12Mpa

Material Of The Stations: Wall plate thickness 16mm

Tolerance: +1.5mm

Power supplier: 380V, 50HZ,3 phases

Way Of Drive:1 inch single chain

Color Of The Machine :customer’s need)

The size of the forming machine:7000*1500*1000mm

Machine weight: about 7 tons

Machine List:

Profile Drawing:

Application:

1, Stiffener ribs on baseplate add formidable strength, specifically over the goose-neck;

2, Full width engagement on the goose-neck male joint;

3, 5 fastening points for stability, particularly over blanket insulation;

4, Engineer-designed geometry of anchor unit f or optimal performance under high wind loads and foot traffic;

5, Entire clip is manufactured from Aluminium – Zinc coated steel for compatibility with sheeting.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
