    Width Auto Adjustable Vertical Sectional Garage Door Panel Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-SD-045
    Certification : CE, SGS, ISO
    Price : USD 15,000 per set
    Supply Ability : 5 sets per month
    Delivery Time : 30-90 days
    • Product Details
    • Company Profile

    Width Auto Adjustable Vertical Sectional Garage Door Panel Roll Forming Machine

    Width Auto Adjustable Vertical Sectional Garage Door Panel Roll Forming Machine


    The non-insulated steel, deep ribbed, commercial sectional garage doors are a great alternative option that is durable and economical.


    The width of the Sectional garage door panel can be adjustable, such as 18",21",24". Some customers need the embossing pattern or the square block, we can also customized it.
    Technical Data:
    ItemsSpecifications
    Material of coilMaterial Thickness0.5mm galvanized coils
    Un Coiler5 tons manual
    Forming systemRolling SpeedAbout 10 meters /minute
    Roller StationsAbout 28-32 stations
    Roller Material

    No.45 steel coated with chrome


    Maim Motor Power7.5 kw
    Motor cutting PowerSaw cutting

    Cutting

    system

    Material Of CuttingCR12mov with quench treatment
    HardnessHRC58-62
    Tolerance+-1.5mm
    Electrical control systemElectric Source

    220V, 60HZ,3 phase

    Also can satisfy Customer’s requirey

    Control SystemPLC as list in the note
    WeightAbout 10 tons
    Way Of Drive1.2 inch chain

    Machine List:


    5 tons passive de-coiler1 set
    Hydraulic pre-cutting device1 set
    Main roll forming machine1 set
    PLC Control box1 unit
    Hydraulic station1 unit
    Output table2 units
    Spare part1 package
    Safety cover1 unit

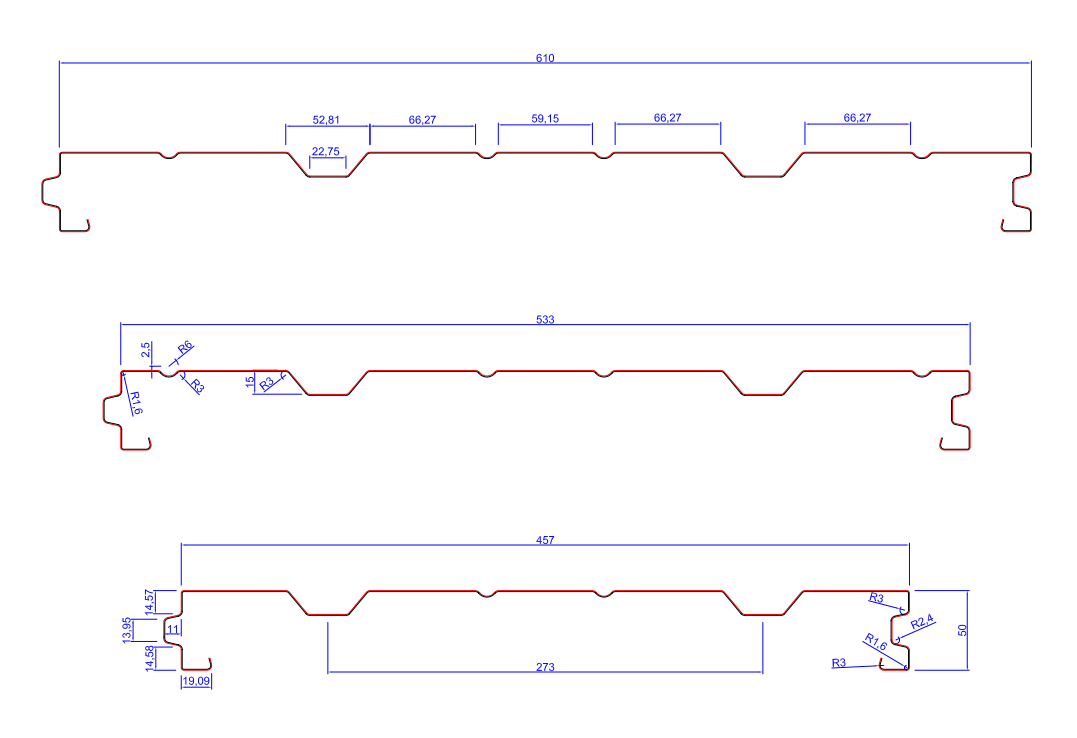

    Profile Drawing:

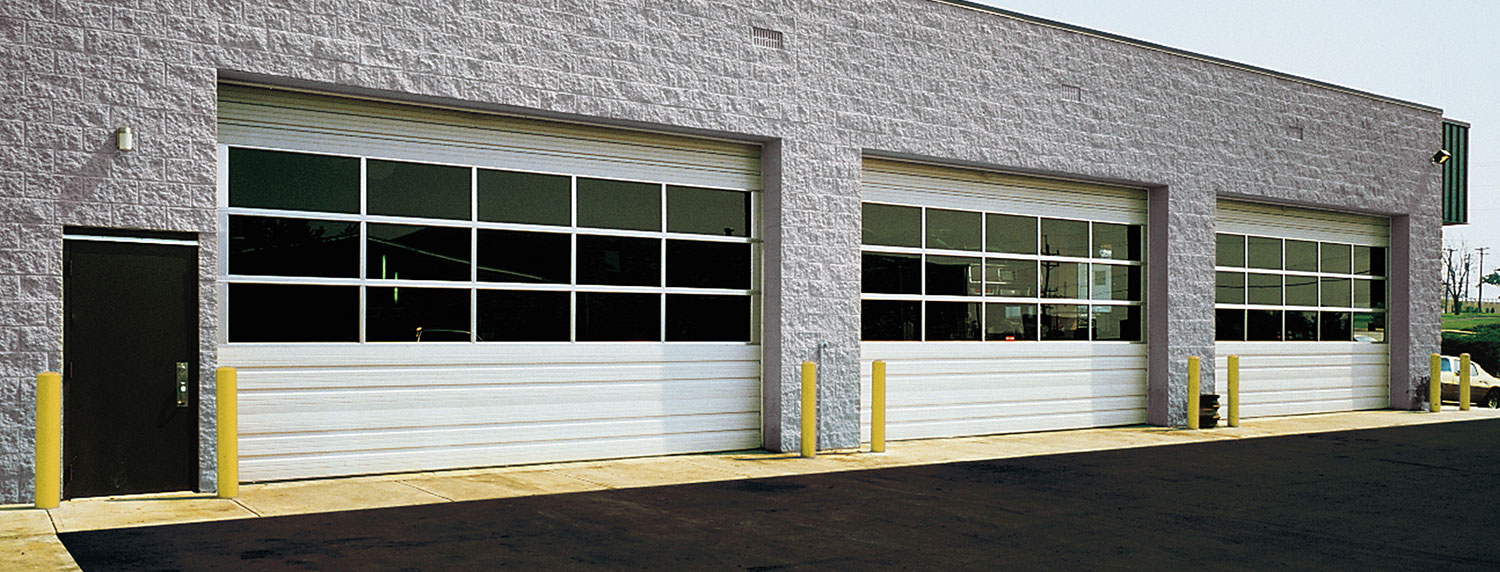

    Application:



    Our service


    1. Professional mechanical background sales for better undestanding customer's need
    2. Experienced in China machine industry for supplying comprehensive machines and equipments
    3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
    4. Engineers available to service machine overseas, for example installation, training, etc
    5. Lifelong service for spares, ware parts, technical supporting, etc
