    USA Popular Width Auto Adjustable Metalcon C U Stud Track Drywall Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF-ST
    Certification : CE, SGS, ISO
    Price : USD25000-USD35000 Per set
    Supply Ability : 10 sets/month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    USA Popular Width Auto Adjustable Metalcon C U Stud Track Drywall Roll Forming Machine

    USA Popular Width Auto Adjustable Metalcon C U Stud Track Drywall Roll Forming Machine


    Metalcon is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places. Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.
    In Drywall system and drywall partition system, we could provide roll forming machine as following:

    1. Metal stud roll forming machine
    2. Metal track roll forming machine

    This machine is made for a customer from Chile, the width is adjustable from 40mm-200mm or 60mm-250mm. It is automatically adjustable.



    Technical Parameter


    Width adjustable by PLC automatically

    ItemsSpecifications
    Material of coilMaterial Thickness0.85-1.6mm G550 Galvanized coils
    Punching deviceHydraulic punching device1 set
    Forming systemRolling Speed10 m/min with driven chain
    Roller StationsAbout 15 stations forming
    Roller MaterialGcr15 Steel with quenching
    Shaft Material

    45# Steel Diameter 75mm shaft


    Main Motor Power7.5 kw

    Cutting
    system

    Material Of CuttingCR12 with quench treatment
    HardnessHRC58-62
    Tolerance+-1.5mm
    Cutting blade2 sets of cutting blade
    Electrical control systemElectric Source380V, 50HZ,3 phase, according to buyer’s request
    Control SystemPLC with touch screen
    WeightAbout 5 tons
    Way Of Drive1 inch single chain
    Size of machineLength 7500mm* Width 800mm* Height 1000m


    Machine List

    3 tons hydraulic de-coiler1 set
    Main roll forming machine with logo1 set
    PLC Control box1 unit
    Hydraulic cutting device1 unit
    Hydraulic punching device1 unit
    6 meters Simple auto stacker1 unit

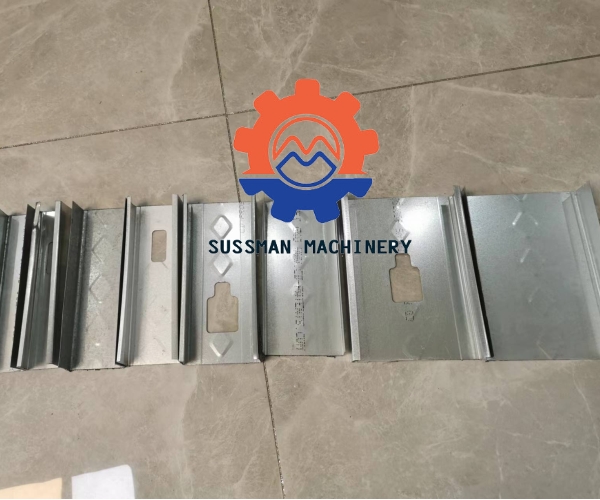

    Profile Drawing



    Technological process:


    Decoiler—feeding with guide—Hydraulic punching—Roll forming—Cutting—Products collecting



    Machine Pictures
